Jw Winco 3G-OTH-522238 — Technical Specifications

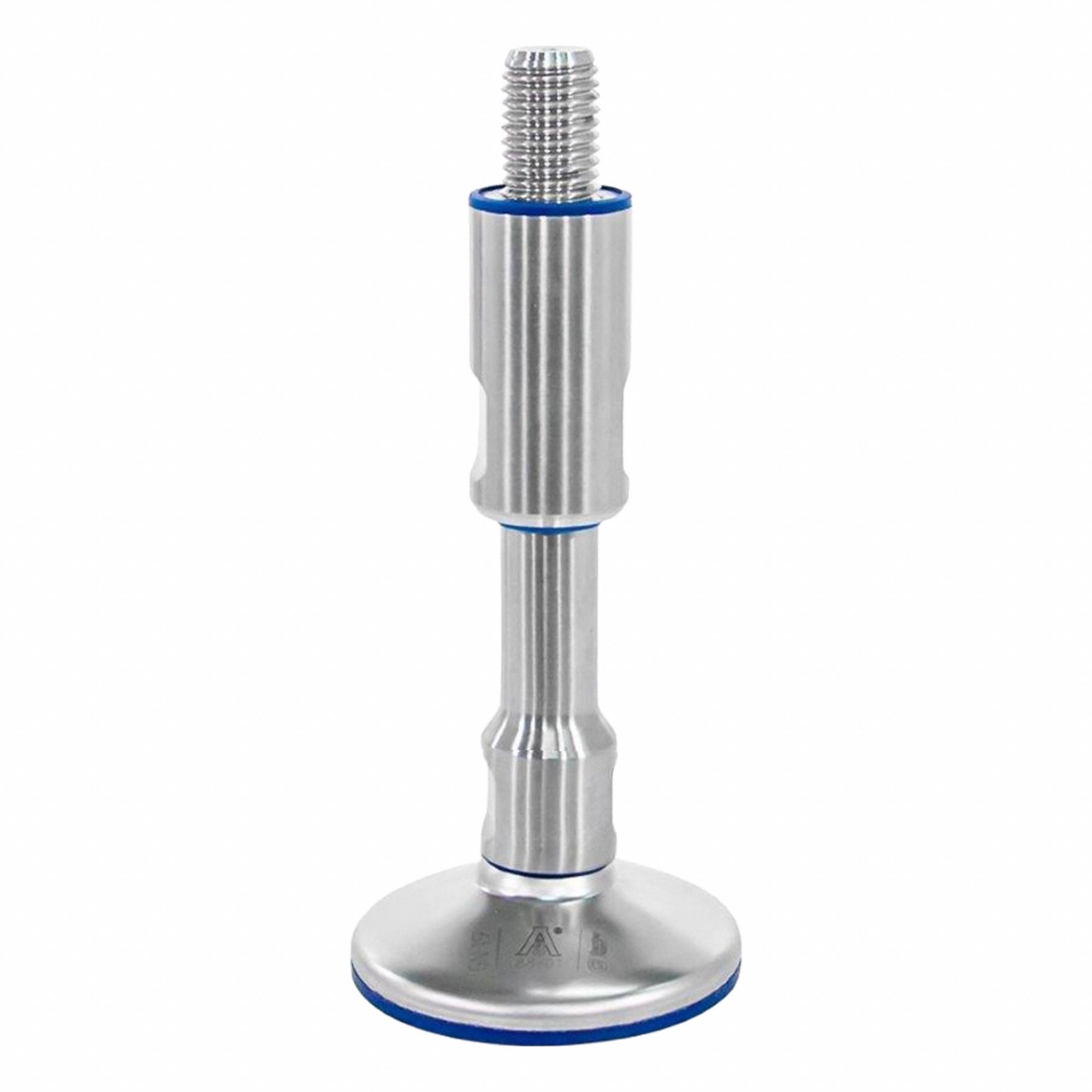

The JW WINCO Male-End Leveling Mount: Swiveling Stud (MPN 19-60-M16-225-A) is a hygienic male leveling mount with an M16 thread size, 60 mm length, and 9 kN capacity. It features a round base, an adjustable sleeve with FDA-compliant wiper and sealing ring, and an 18 mm joint hex size; mounting holes are not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | M16 Thread Size, 60 mm |
| Capacity | 9 kN |
| Hex Size | 18 mm (Joint) |
| Includes | Adjustable Sleeve with FDA-Compliant Wiper and Sealing Ring |
| Base Shape | Round |
| Load Capacity | 9 kN |
| Mounting Holes | Mounting Holes Not Included |
| Manufacturer Part Number | 19-60-M16-225-A |
