Jw Winco 3G-OTH-517629 — Technical Specifications

Name: Jw Winco 3G-OTH-517629 JW WINCO Male-End Leveling Mount: Swiveling Stud, 3/8"-16 Thread Size, 3 3/20 in, 3,147 lbf Capacity (MPN 43-80-3/8X16-75-G3-SK). Key specifications — Finish: Plain; Base Shape: Rectangular; Load Capacity: 3,147 lbf; Thrust Pad Material: Buna-N; Mounting Holes: Mounting Holes Included; Includes: Rubber Pad; Hex Size: 11/16 in; Base Width: 3-3/20 in.
Brand: Jw Winco

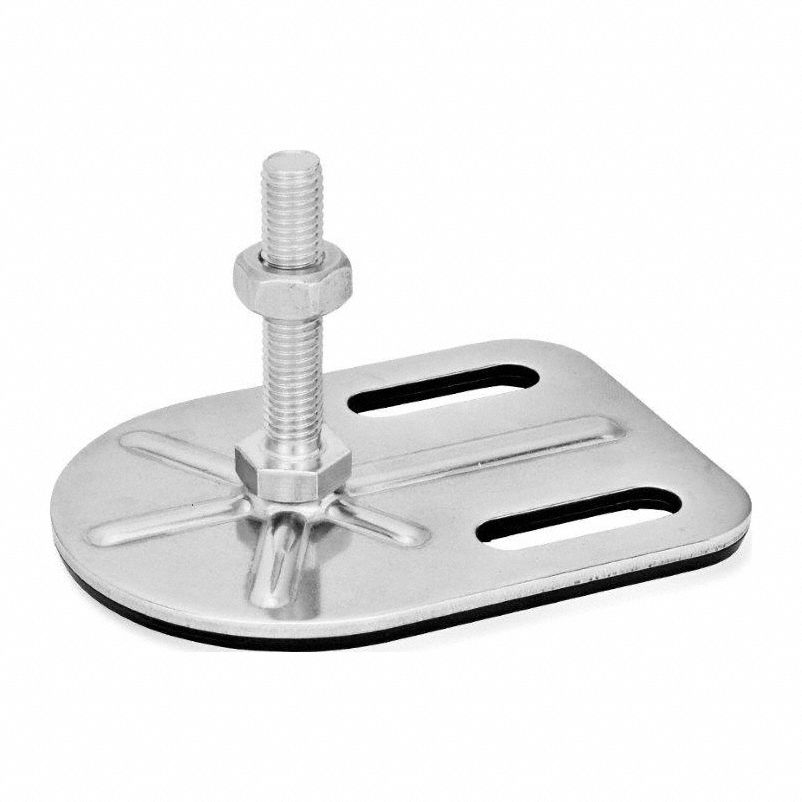

The JW WINCO Male-End Leveling Mount (SKU 805XA8) is a non-skid male leveling mount with a swiveling stud, featuring a 3/8"-16 thread size, 3 3/20 in base width, and 3,147 lbf load capacity. It includes a rubber pad, Buna-N thrust pad, and mounting holes, with a plain finish and 11/16 in hex size.

View Product & Quote

Technical Specifications

Parameter	Value
Type	3 3/20 in, 3,147 lbf Capacity
Finish	Plain
Hex Size	11/16 in
Includes	Rubber Pad
Base Shape	Rectangular
Base Width	3-3/20 in
Thread Size	3/8"-16
Load Capacity	3,147 lbf
Mounting Holes	Mounting Holes Included
Thrust Pad Material	Buna-N
Manufacturer Part Number	43-80-3/8X16-75-G3-SK
