Johnson Controls 3G-OTH-67855 — Technical Specifications

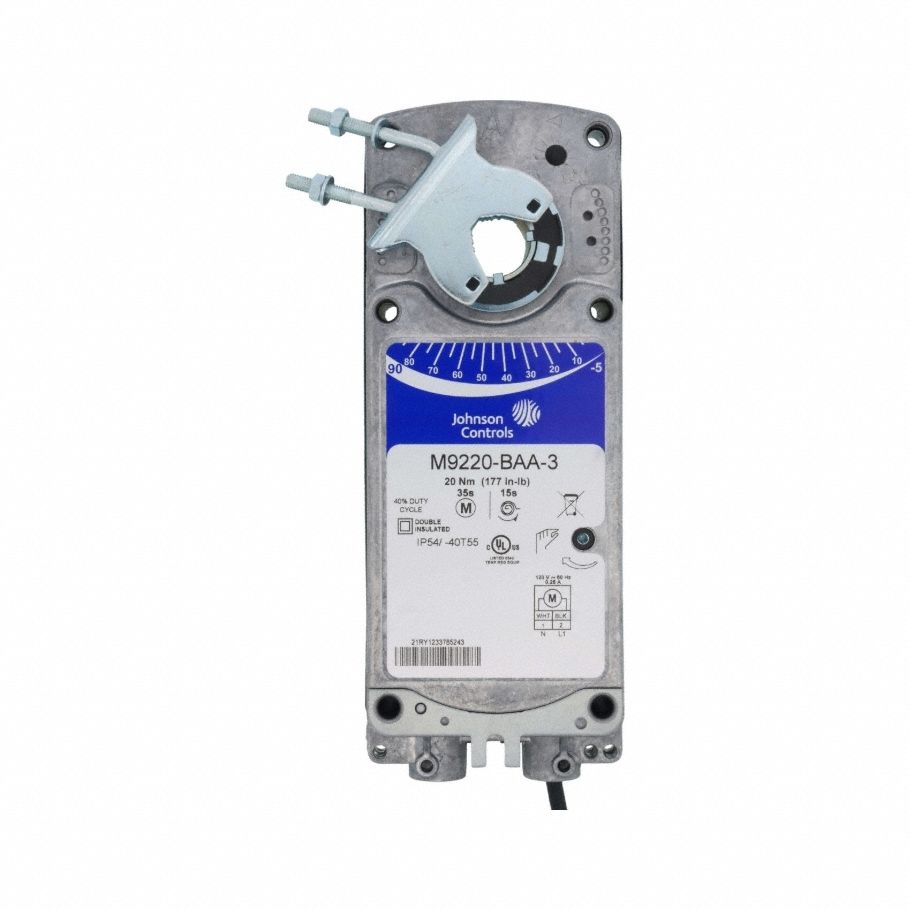

The JOHNSON CONTROLS M9220-BAA-3 is a fail-safe damper actuator with spring return, featuring a self-centering clamping shaft and 90° stroke with CW/CCW rotation. It operates on 120V AC with hardwired electrical connection and is compatible with building automation systems. This on/off actuator delivers 177 in-lb torque and is rated NEMA 2 / IP54.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | On/Off, Spring Return, 177 in-lb, Hardwired, NEMA 2 / IP54 |
| Brand | JOHNSON CONTROLS |
| Shaft Type | Self-Centering Clamping |
| Input Voltage | 120V AC |
| Stroke Degree | 90° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | M9220-BAA-3 |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
