Johnson Controls 3G-OTH-66995 — Technical Specifications

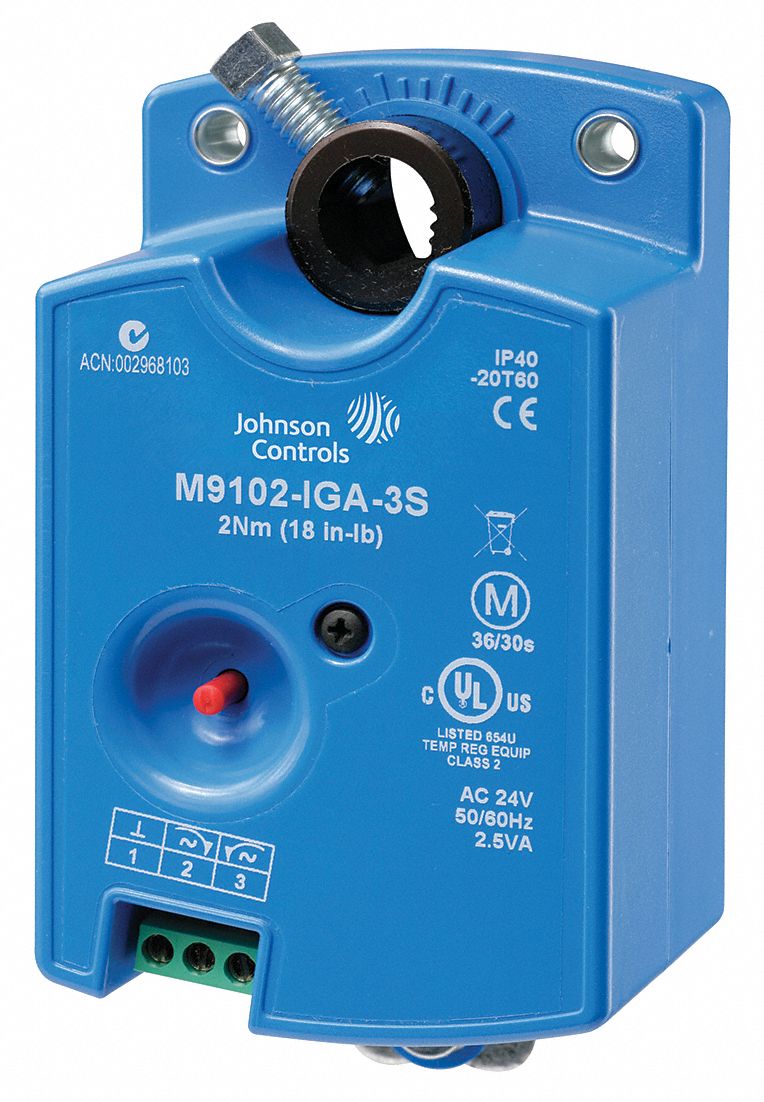

The JOHNSON CONTROLS M9102-AGA-3S is a non-fail-safe actuator for dampers, VAV boxes, and zone valves, operating on 24V AC with a 93° stroke and CW/CCW shaft rotation. It features floating point control, non-spring return, and 18 in-lb torque, with screw terminals for electrical connection. This actuator is compatible with building automation systems and does not include an auxiliary switch.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 24V |
| Type | Floating Point, Non-Spring Return, 18 in-lb |
| Brand | JOHNSON CONTROLS |
| Input Voltage | 24V AC |
| Stroke Degree | 93° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | M9102-AGA-3S |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Screw Terminals |
| For Use With Building Automation Systems | Building Automation System Compatible |
