Johnson Controls 3G-OTH-175985 — Technical Specifications

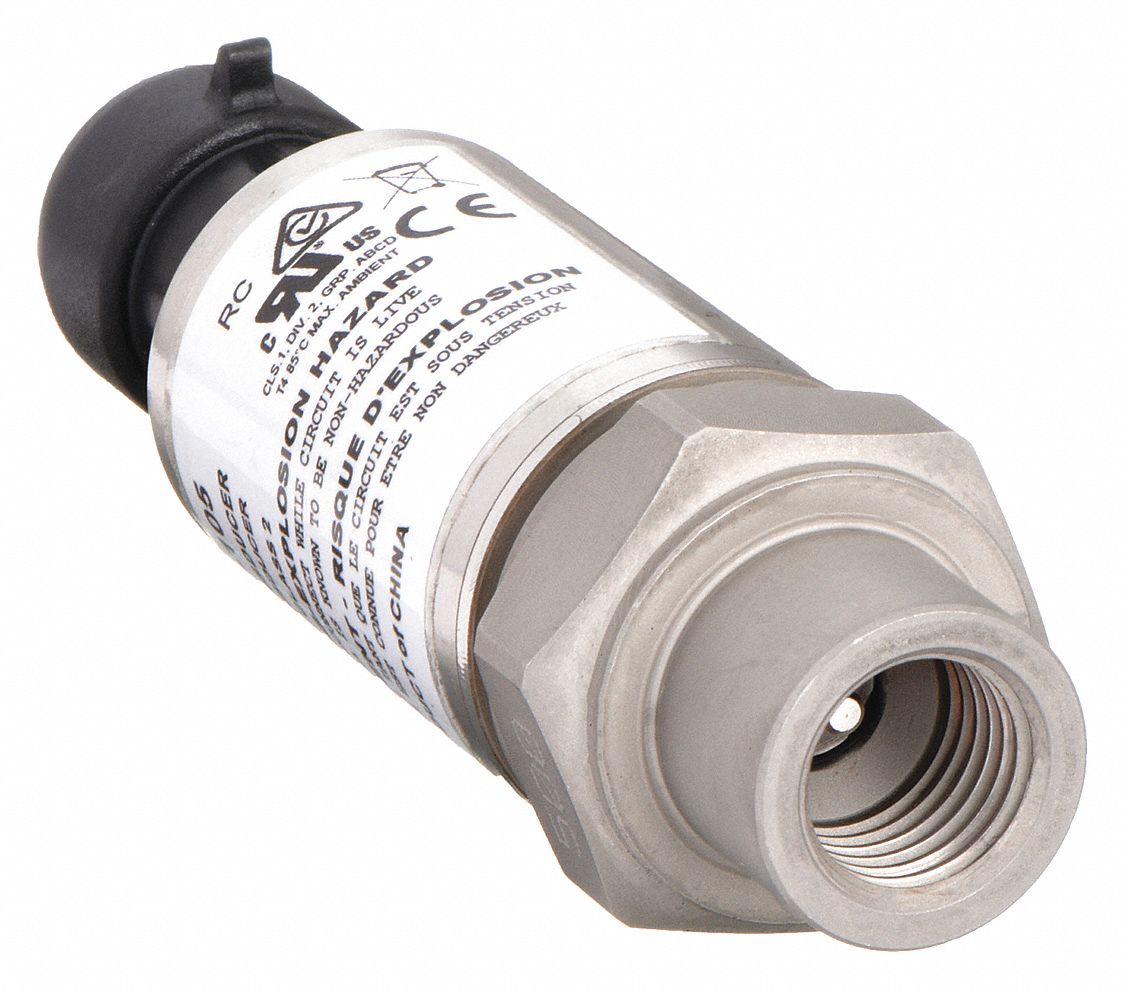

The JOHNSON CONTROLS P499RCP-101K is a pressure transmitter from the P499 Series, offering a 0 psi to 100 psi range with a 0.5 to 4.5V DC output via a 3-Pin Packard Connector. It features ±1% accuracy, an IP67 rating, and a stainless steel housing, with an SAE 45° Flare male process connection. Overpressure capability is 2x range, and burst pressure is 5x range; no NIST-traceable calibration certificate is included.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 0.5 to 4.5V |
| Type | IP67 |
| Brand | JOHNSON CONTROLS |
| Output | 0.5 to 4.5V DC |
| Series | P499 |
| Accuracy | ±1% |
| IP Rating | IP67 |
| Overpressure | 2x Range |
| Burst Pressure | 5x Range |
| Housing Material | Stainless Steel |
| Packard Connector | 3-Pin |
| Process Connection Type | SAE 45° Flare |
| Manufacturer Part Number | P499RCP-101K |
| Process Connection Gender | Male |
| Calibration Certificate Included | No NIST-Traceable Calibration Certificate Included |
