Jergens 3G-OTH-184057 — Technical Specifications

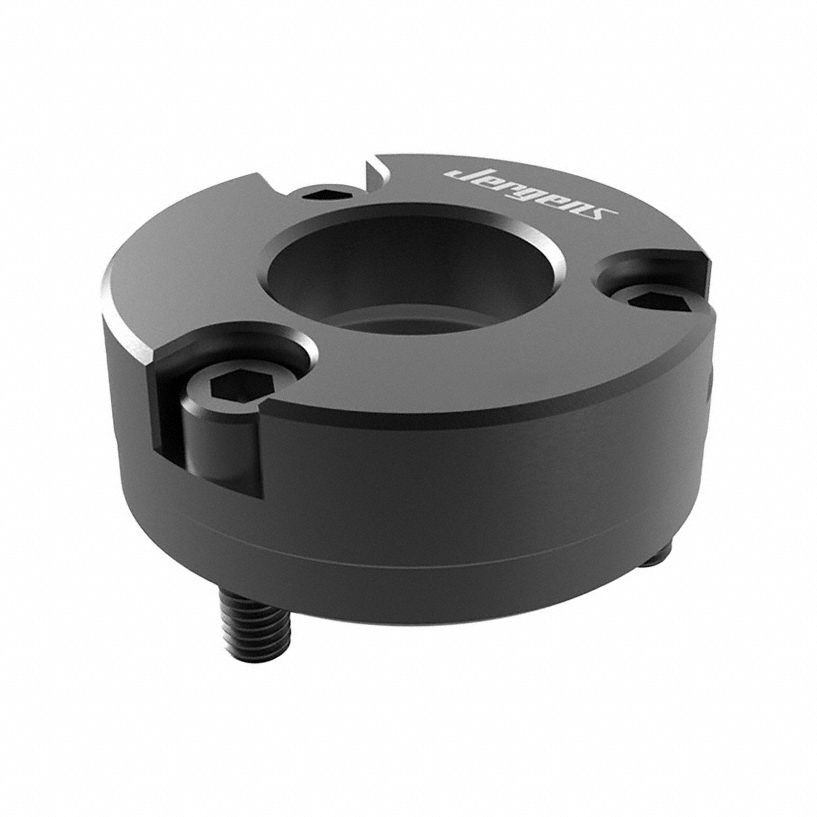

The JERGENS Ball Lock Face Mount Receiver Bushing (SKU 830MZ4, Mfr Part 49507) is a steel, black-oxide receiver bushing with a 16 mm shank diameter and a thread size of 8-32 x 5/16. This face-mount design is engineered for use with JERGENS Ball Lock systems to provide precise, repeatable locating and clamping in industrial fixturing applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Steel, 49507 |
| Brand | JERGENS |
| Shank Dia | 16 mm |
| Thread Size | 8-32 x 5/16 |
| Product Type | Ball Lock Face Mount Receiver Bushing |
| Manufacturer Part Number | 49507 |
