Jergens 3G-OTH-184088 — Technical Specifications

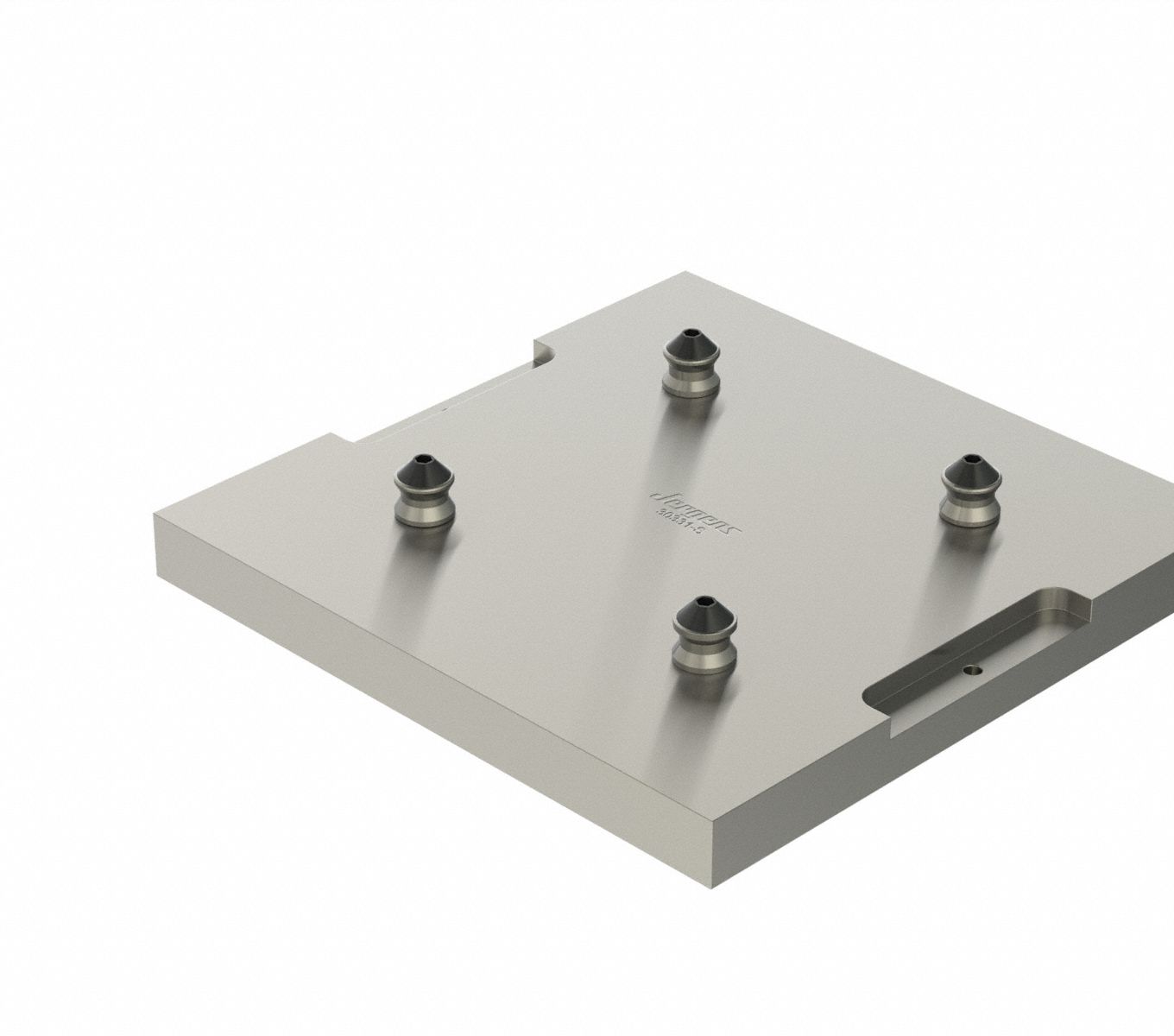

The JERGENS Fixture Plate: ZPS is a steel, square zero point system fixture plate (MPN 30331-S) with dimensions of 400 mm W x 400 mm L x 70.1 mm H and a weight of 104.52 lb. It features a thread size of M10x1.50, a pull stud size of K20, and includes (2) installed clearance studs. This plate is compatible with 4-Module Subplates and accommodates 4 studs.
Technical Specifications
| Parameter | Value |
|---|---|
| H | 400 mm W x 400 mm L x 70.1 mm |
| Wt | 104.52 lb |
| Type | Steel, Square |
| Brand | JERGENS |
| Studs | 4 |
| Thread Size | M10x1.50 |
| Product Type | Fixture Plate |
| Pull Stud Size | K20 |
| Installed Components | (2) Clearance Studs |
| Manufacturer Part Number | 30331-S |
| Compatible Pull Stud Part Number | 4-Module Subplates |
