Jergens 3G-OTH-184082 — Technical Specifications

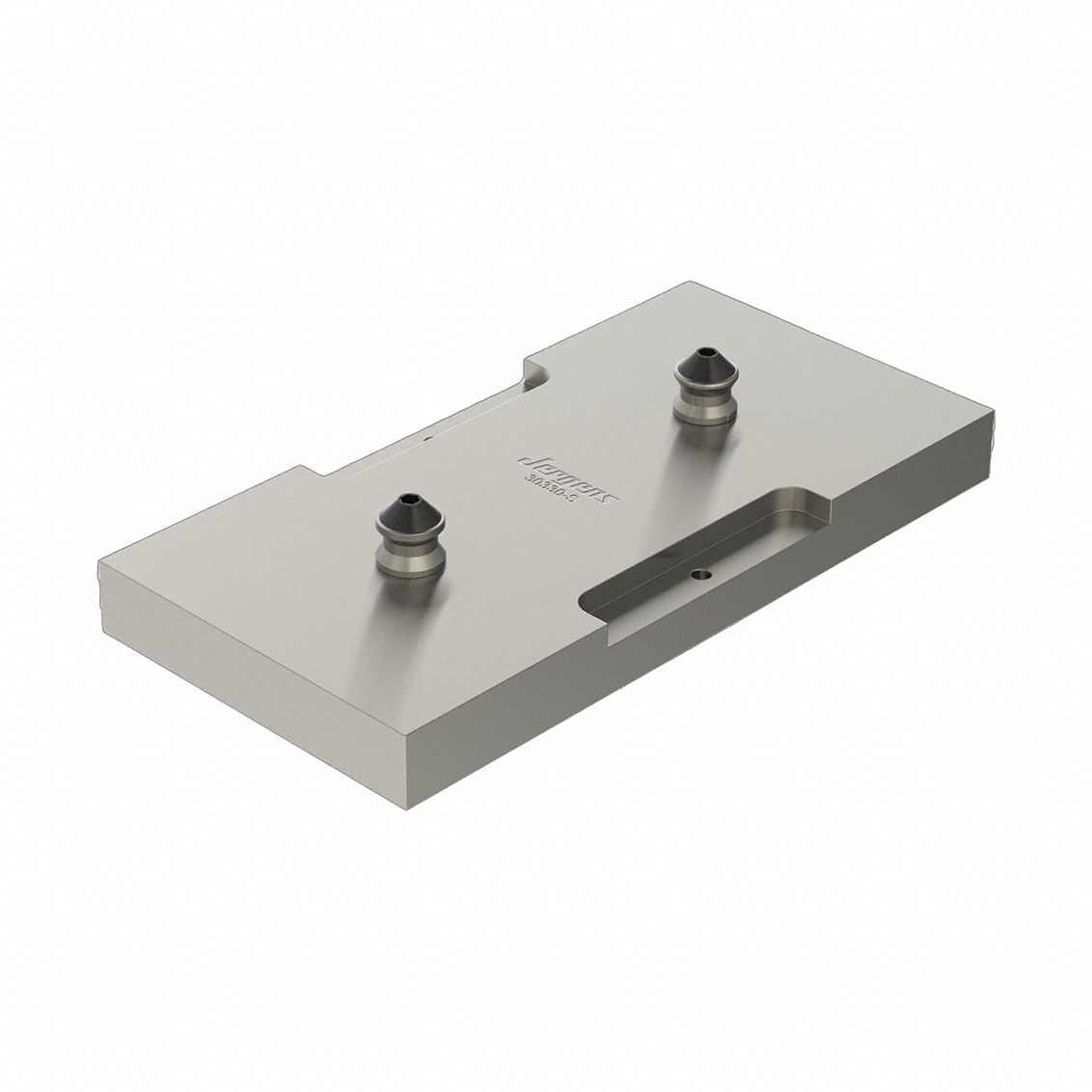

The JERGENS Fixture Plate: ZPS (MPN 30330-A) is a zero point system fixture plate made of aluminum, with a rectangular shape and dimensions of 200 mm W x 400 mm L x 47.4 mm H, weighing 18.08 lb. It features a thread size of M10x1.50, a pull stud size of K20, and includes an installed timing stud. This fixture plate is compatible with 2-Module Subplates for pull stud integration.
Technical Specifications
| Parameter | Value |
|---|---|
| H | 200 mm W x 400 mm L x 47.4 mm |
| Wt | 18.08 lb |
| Type | Aluminum, Rectangular |
| Brand | JERGENS |
| Thread Size | M10x1.50 |
| Product Type | Fixture Plate |
| Pull Stud Size | K20 |
| Installed Components | Timing Stud |
| Manufacturer Part Number | 30330-A |
| Compatible Pull Stud Part Number | 2-Module Subplates |
