Jergens 3G-OTH-184085 — Technical Specifications

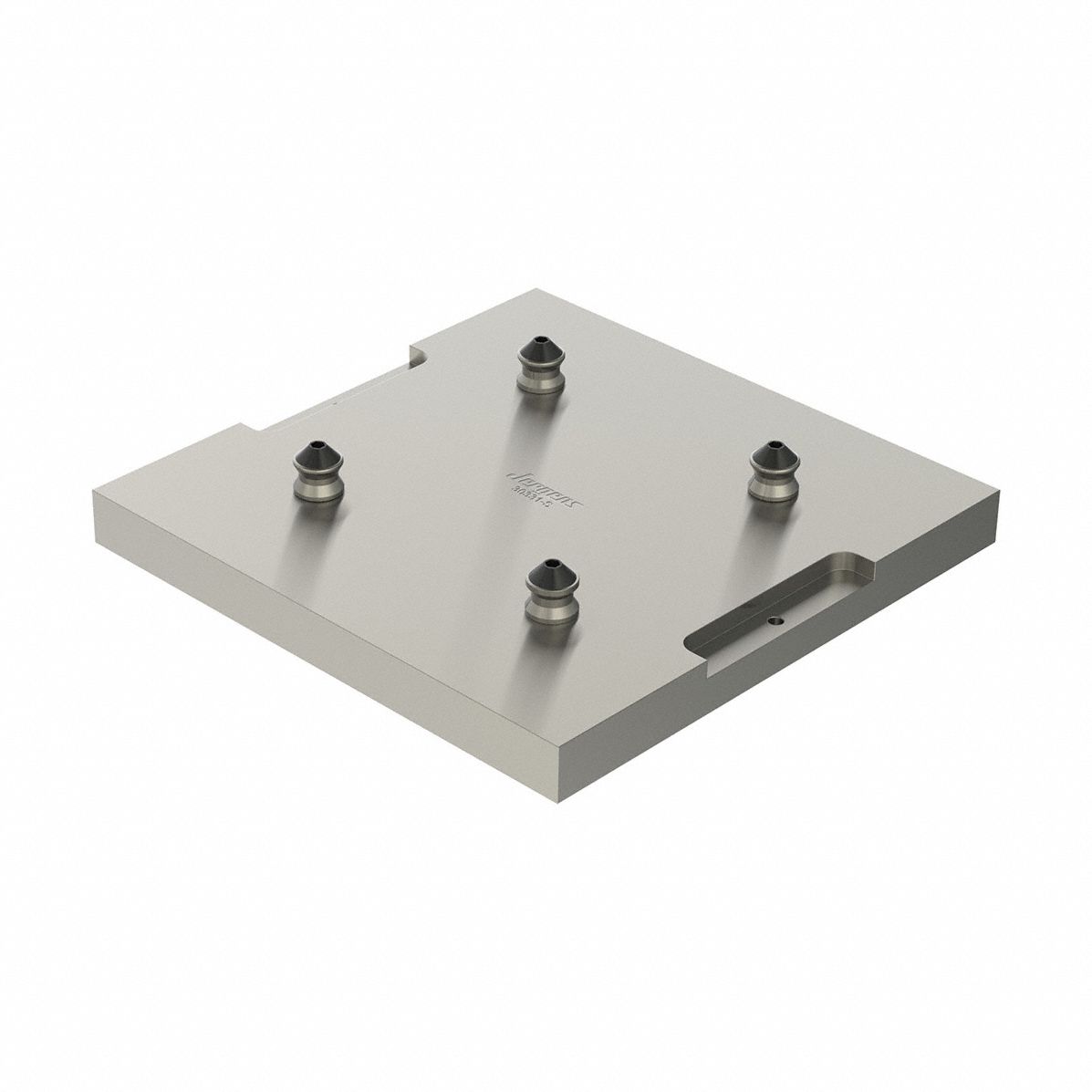

The JERGENS Fixture Plate: ZPS is a zero point system fixture plate, model 30321-A, constructed of aluminum in a square 300 mm W x 300 mm L x 47.4 mm H format weighing 14.11 lb. It features a thread size of M10x1.50, a K10 pull stud size, and includes an installed timing stud. This plate is compatible with 4-Module Subplates and accommodates 4 studs for modular workholding setups.
Technical Specifications
| Parameter | Value |
|---|---|
| H | 300 mm W x 300 mm L x 47.4 mm |
| Wt | 14.11 lb |
| Type | Aluminum, Square |
| Brand | JERGENS |
| Studs | 4 |
| Thread Size | M10x1.50 |
| Product Type | Fixture Plate |
| Pull Stud Size | K10 |
| Installed Components | Timing Stud |
| Manufacturer Part Number | 30321-A |
| Compatible Pull Stud Part Number | 4-Module Subplates |
