Jergens 3G-OTH-184094 — Technical Specifications

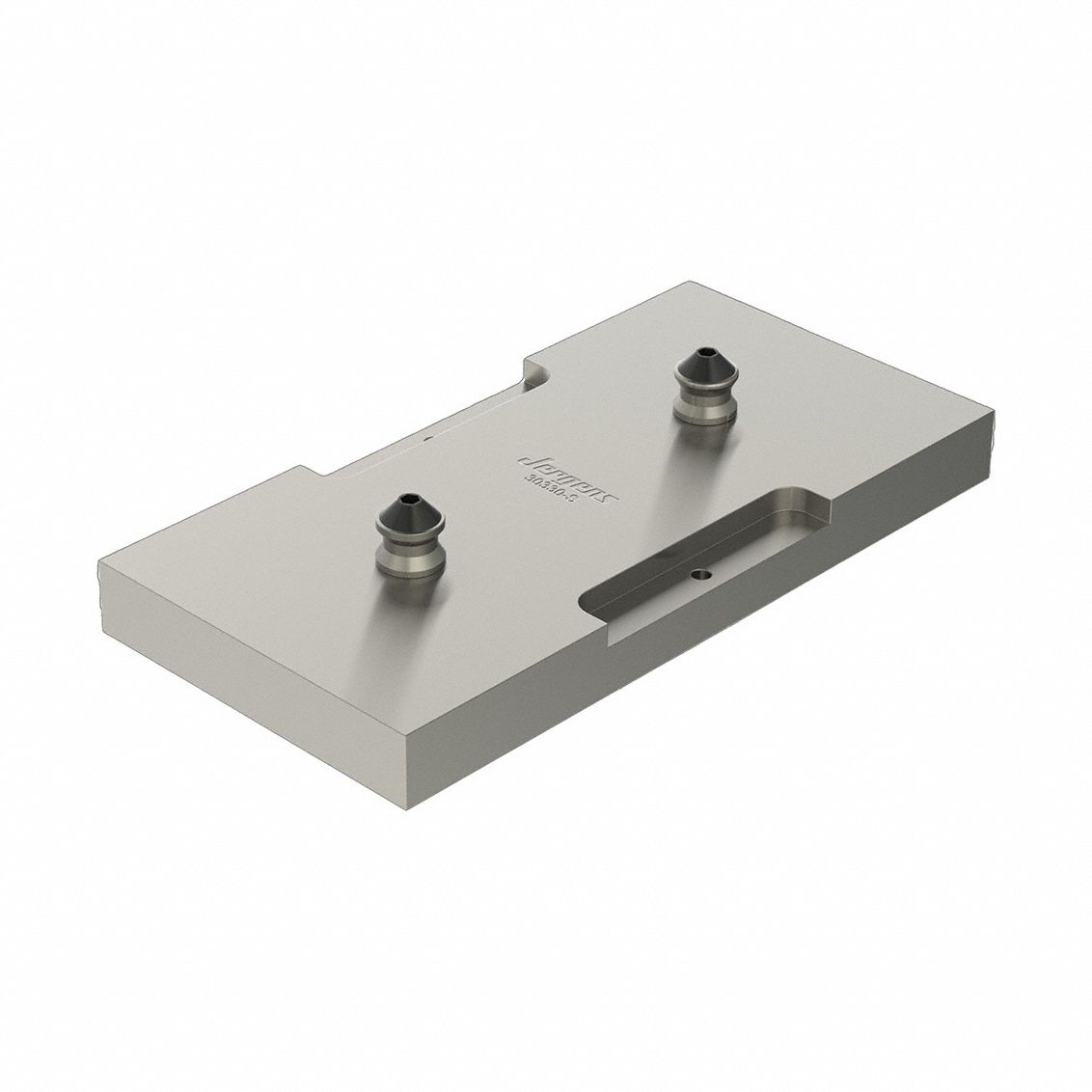

The JERGENS Fixture Plate: ZPS is a steel, rectangular zero point system fixture plate (MPN 30320-S) measuring 150 mm W x 300 mm L x 47.4 mm H and weighing 18.52 lb. It features an M10x1.50 thread size, a K10 pull stud size, and includes an installed timing stud. This plate is compatible with 2-Module Subplates pull studs.
Technical Specifications
| Parameter | Value |
|---|---|
| H | 150 mm W x 300 mm L x 47.4 mm |
| Wt | 18.52 lb |
| Type | Steel, Rectangular |
| Brand | JERGENS |
| Thread Size | M10x1.50 |
| Product Type | Fixture Plate |
| Pull Stud Size | K10 |
| Installed Components | Timing Stud |
| Manufacturer Part Number | 30320-S |
| Compatible Pull Stud Part Number | 2-Module Subplates |
