Jergens 3G-OTH-184100 — Technical Specifications

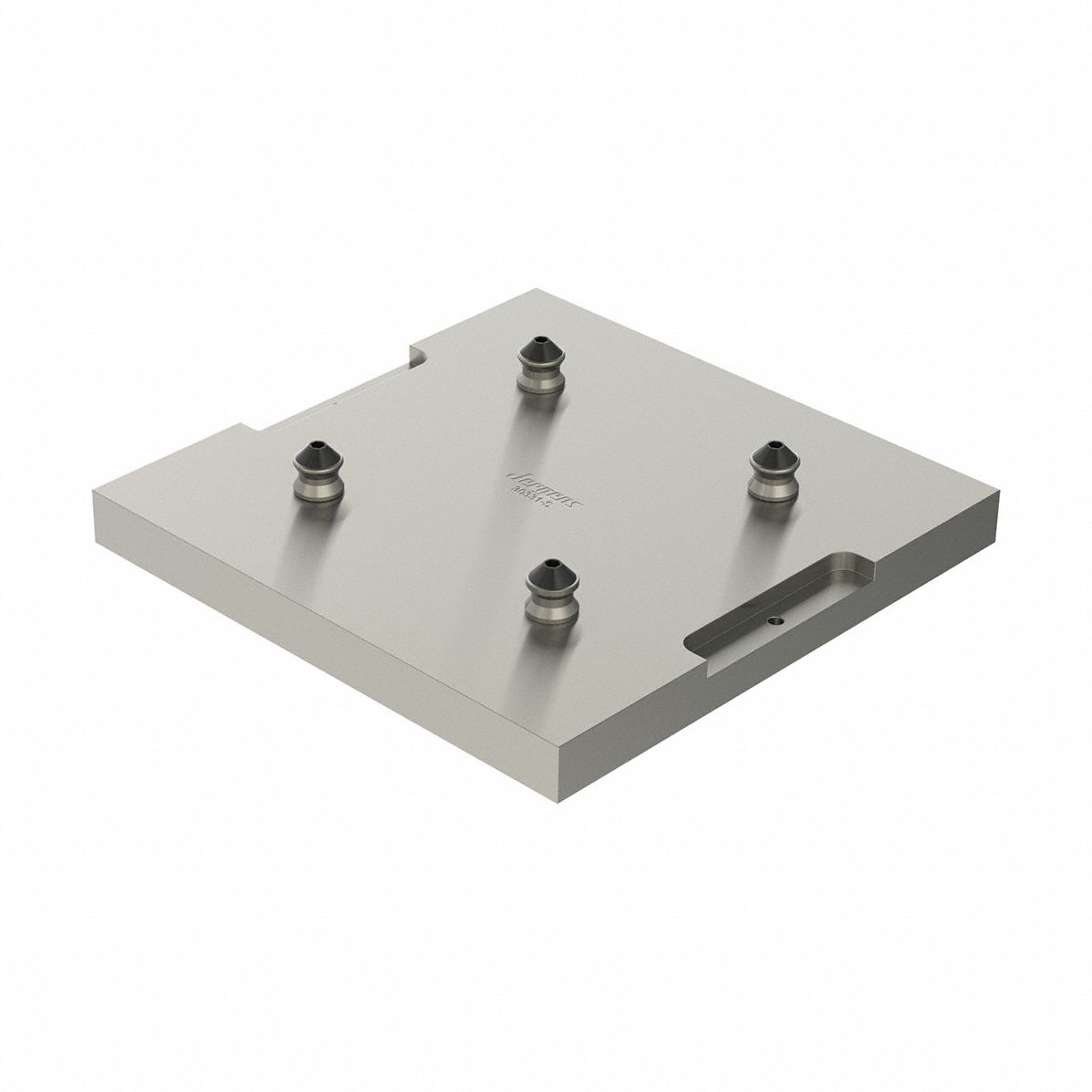

The JERGENS Fixture Plate: ZPS (MPN 30311-S) is a steel, rectangular zero point system fixture plate weighing 18.08 lb with dimensions 225 mm W x 180 mm L x 39 mm H. It features a K5 pull stud size, includes an installed timing stud, and is compatible with 4-Module Subplates pull studs. This plate accommodates 4 studs for secure workpiece positioning.
Technical Specifications
| Parameter | Value |
|---|---|
| H | 225 mm W x 180 mm L x 39 mm |
| Wt | 18.08 lb |
| Type | Steel, Rectangular |
| Brand | JERGENS |
| Studs | 4 |
| Product Type | Fixture Plate |
| Pull Stud Size | K5 |
| Installed Components | Timing Stud |
| Manufacturer Part Number | 30311-S |
| Compatible Pull Stud Part Number | 4-Module Subplates |
