Jergens 3G-OTH-184091 — Technical Specifications

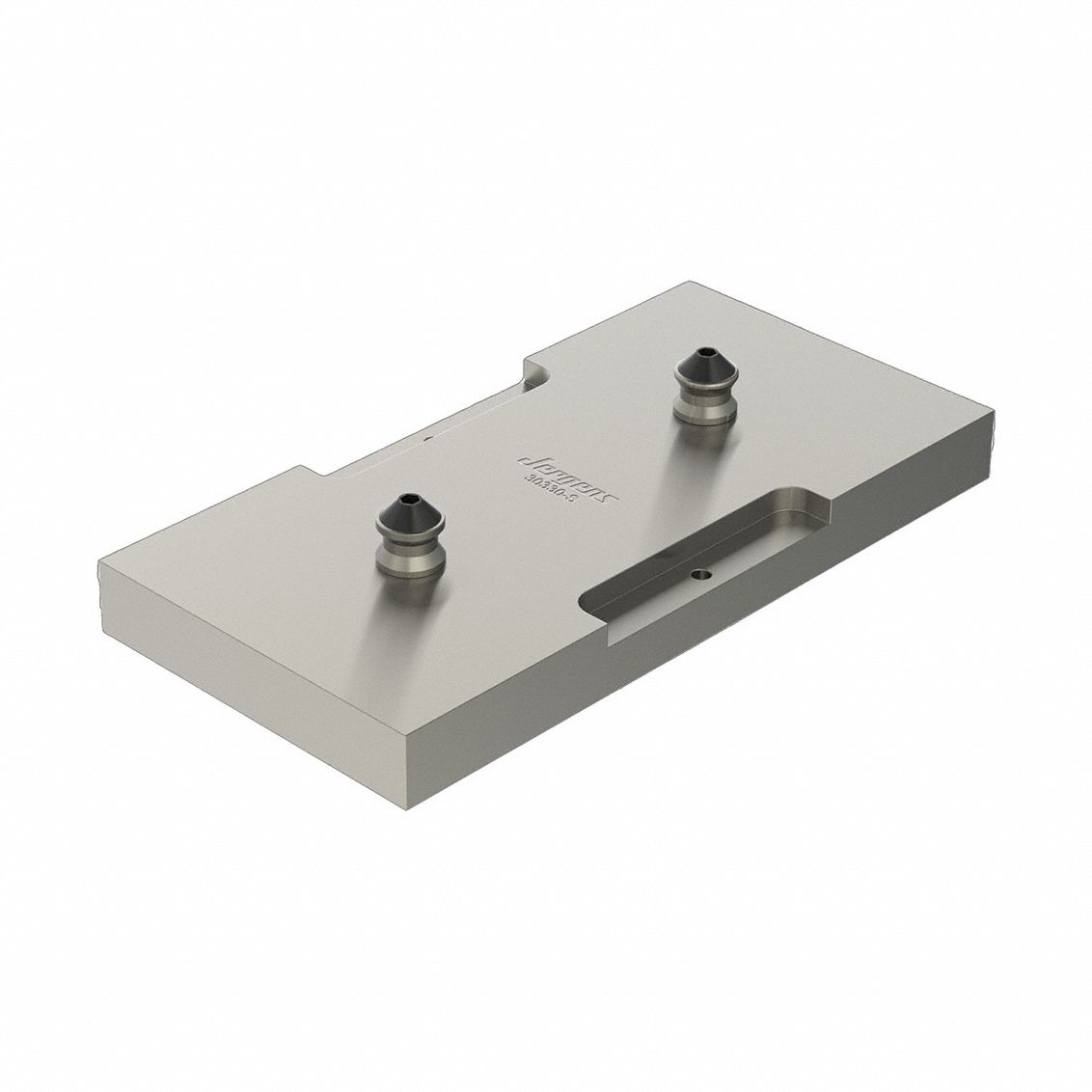

The JERGENS Fixture Plate: ZPS is a steel, rectangular zero point system fixture plate (MPN 30310-S) weighing 7.5 lb with dimensions 100 mm W x 180 mm L x 39 mm H. It features a K5 pull stud size and includes an installed timing stud, compatible with 2-Module Subplates.
Technical Specifications
| Parameter | Value |
|---|---|
| H | 100 mm W x 180 mm L x 39 mm |
| Wt | 7.5 lb |
| Type | Steel, Rectangular |
| Brand | JERGENS |
| Studs | 2 |
| Product Type | Fixture Plate |
| Pull Stud Size | K5 |
| Installed Components | Timing Stud |
| Manufacturer Part Number | 30310-S |
| Compatible Pull Stud Part Number | 2-Module Subplates |
