Iptci Bearings 3G-OTH-105311 — Technical Specifications

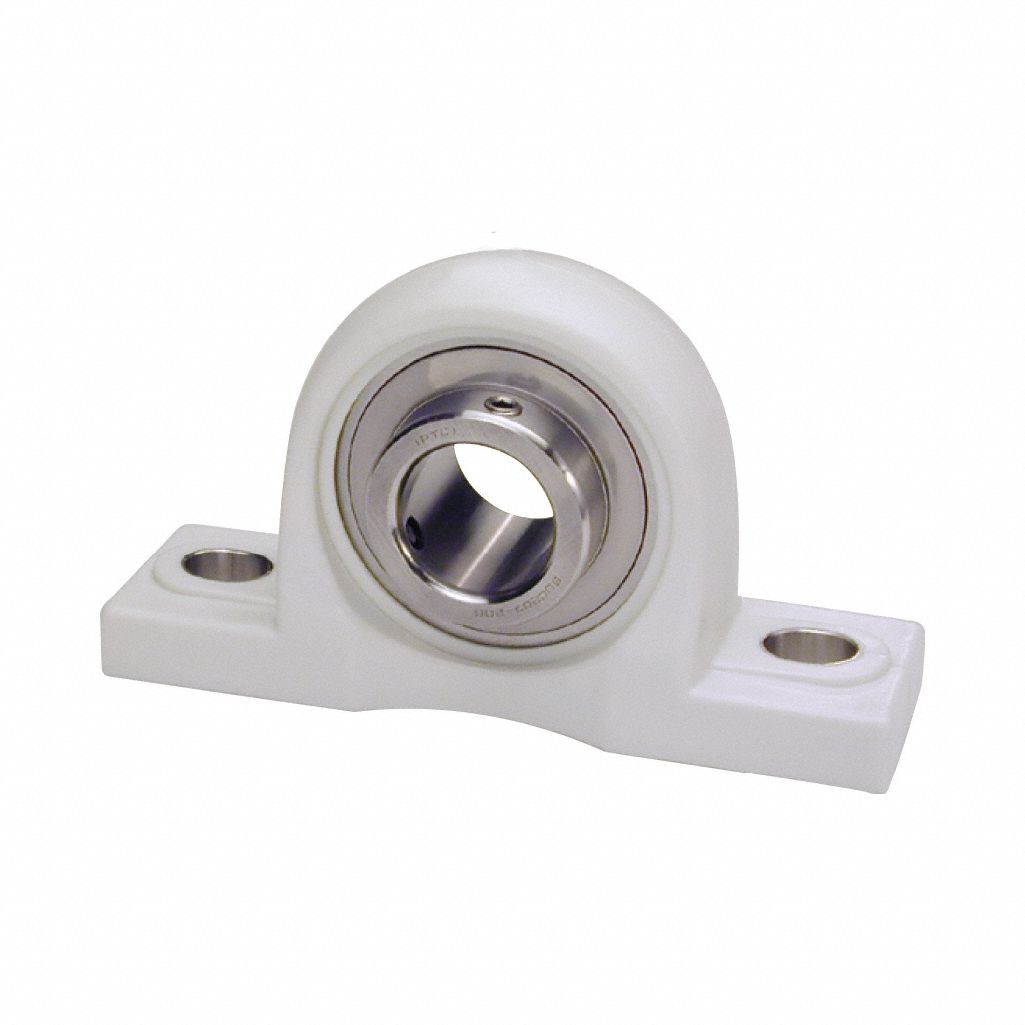

Name: Iptci Bearings 3G-OTH-105311 IPTCI BEARINGS Pillow Block Bearing: 1 1/8 in Bore, Polymer, Set Screws, 1 11/16 in Shaft Ht (MPN SUCTP206-18 IP69K). Key specifications — Brand: IPTCI BEARINGS; Maximum Speed: 450 RPM; Mounting Bolt Size: 1/2 in; Standards: AFBMA; System of Measurement: Inch.
Brand: Iptci Bearings

The IPTCI BEARINGS Washdown Pillow Block Ball Bearing (SKU 868YV1, MPN SUCTP206-18 IP69K) is an inch-system polymer bearing with a 1 1/8 in bore, 1 11/16 in shaft height, and set-screw locking. It meets AFBMA standards, has a maximum speed of 450 RPM, and uses a 1/2 in mounting bolt.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Polymer, Set Screws
Brand	IPTCI BEARINGS
Shaft Ht	1 11/16 in
Standards	AFBMA
Maximum Speed	450 RPM
Mounting Bolt Size	1/2 in
System Of Measurement	Inch
Manufacturer Part Number	SUCTP206-18 IP69K
