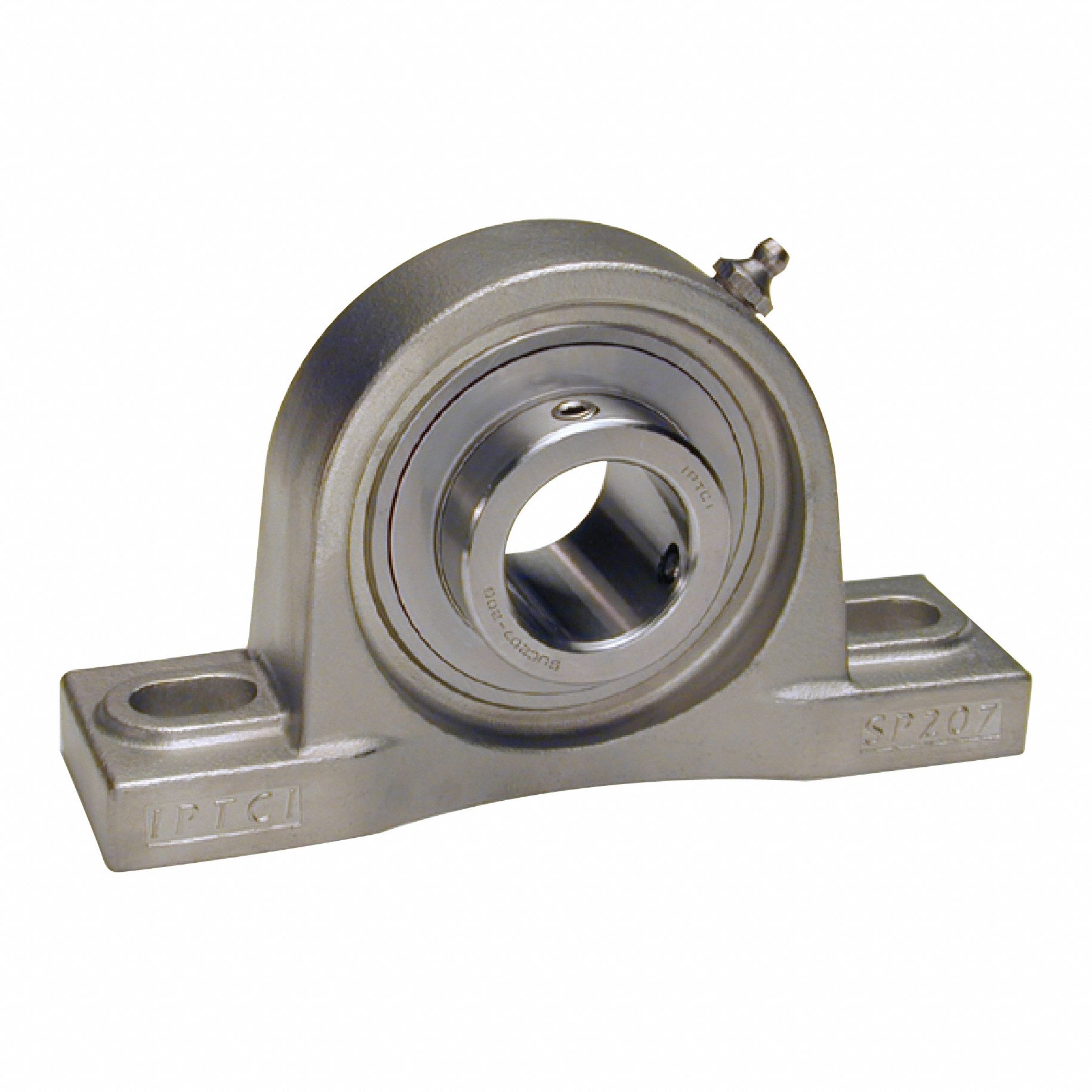

Iptci Bearings 3G-OTH-105484 — Technical Specifications

Name: Iptci Bearings 3G-OTH-105484 IPTCI BEARINGS Pillow Block Bearing: 3/4 in Bore, SS, Set Screws, 1 5/16 in Shaft Ht, 210°F Max Temp (MPN SUCSP204-12 IP69K). Key specifications — Brand: IPTCI BEARINGS; Maximum Speed: 6,500 RPM Grease; Mounting Bolt Size: 3/8 in; Standards: AFBMA; System of Measurement: Inch.
Brand: Iptci Bearings

The IPTCI BEARINGS Washdown Pillow Block Ball Bearing (SKU 868Y83, MPN SUCSP204-12 IP69K) is an inch-system bearing with a 3/4 in bore, 1 5/16 in shaft height, and 3/8 in mounting bolt size. It features stainless steel construction and set screws, with a maximum speed of 6,500 RPM grease and a maximum temperature of 210°F. This AFBMA-standard bearing is designed for washdown applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	SS, Set Screws
Brand	IPTCI BEARINGS
Max Temp	210°F
Shaft Ht	1 5/16 in
Standards	AFBMA
Maximum Speed	6,500 RPM Grease
Mounting Bolt Size	3/8 in
System Of Measurement	Inch
Manufacturer Part Number	SUCSP204-12 IP69K
