Iptci Bearings 3G-OTH-104182 — Technical Specifications

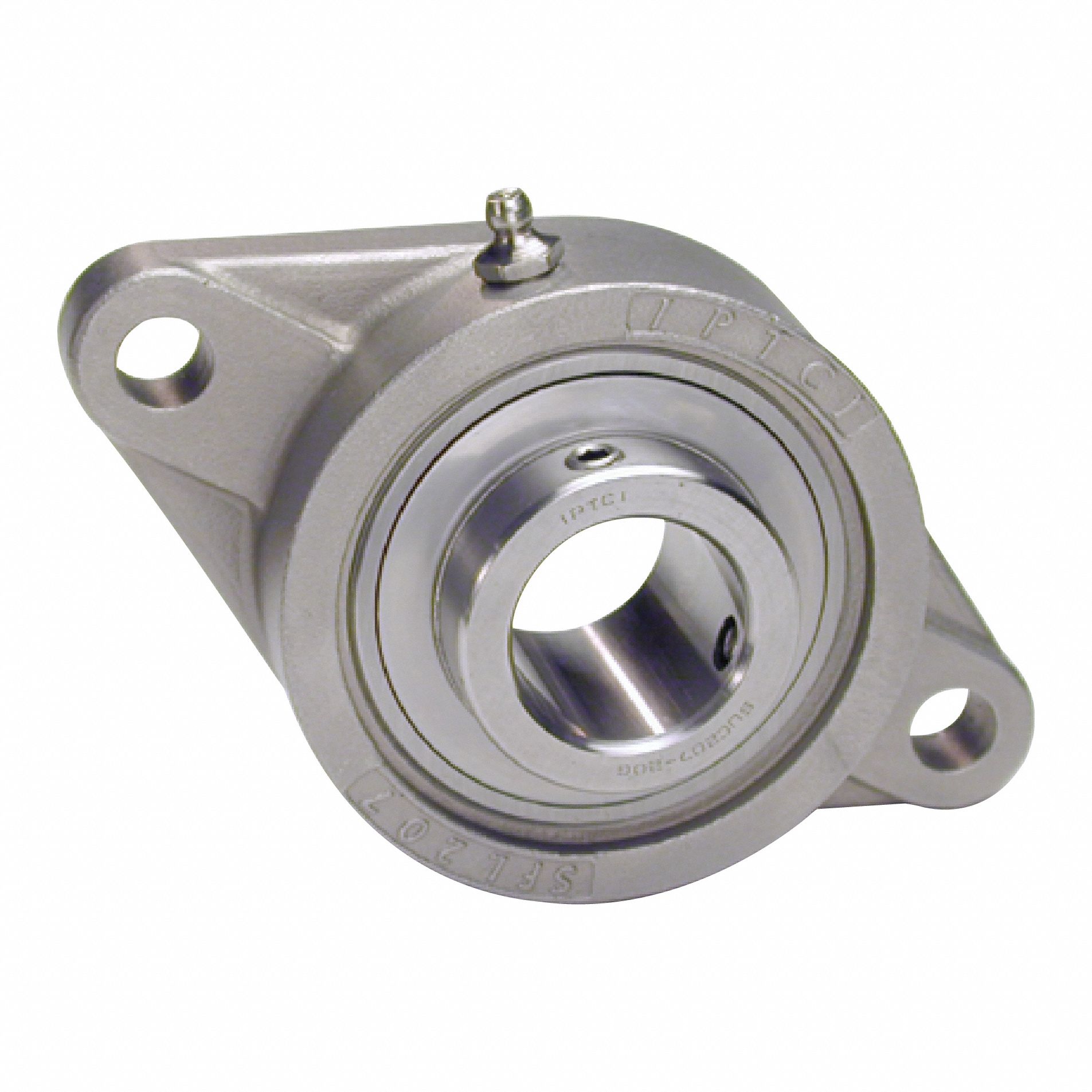

The IPTCI BEARINGS 2 Bolt Flange Bearing is a washdown flange-mount ball bearing with a 40 mm cylindrical bore and a stainless steel housing. It features set screws, H-1 grease lubrication, and a 7/16 in mounting bolt size, with dimensions of 171 mm length and 50.8 mm width. This metric unit is not split and carries the manufacturer part number SUCSFL208-40MM IP69K.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 171 mm |
| Wd | 50.8 mm |
| Bore | 40 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 7/16 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSFL208-40MM IP69K |
