Iptci Bearings 3G-OTH-106274 — Technical Specifications

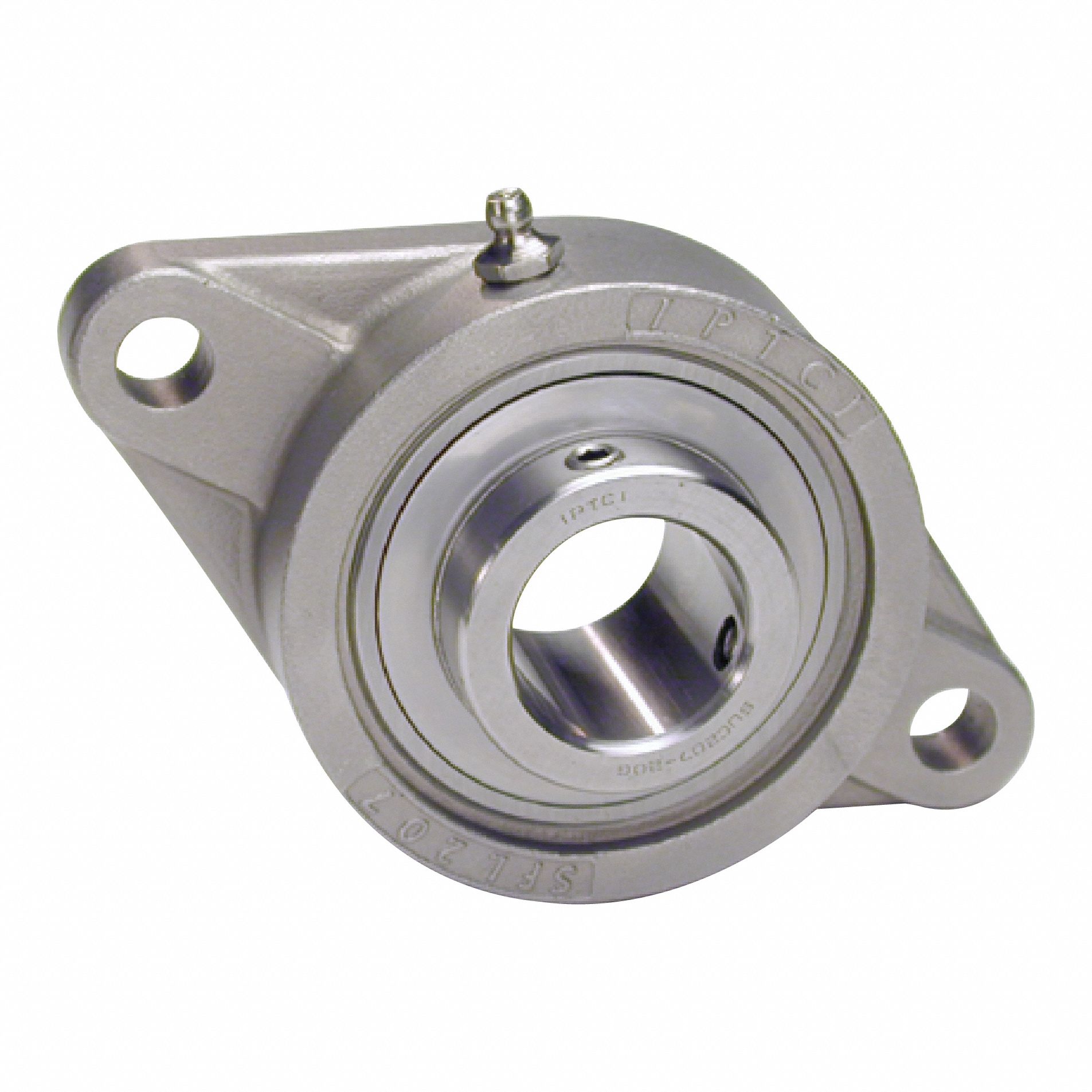

The IPTCI BEARINGS 2 Bolt Flange Bearing is a washdown flange-mount radial ball bearing with a 20 mm cylindrical bore, stainless steel construction, and set screws. It features a not-split housing, H-1 grease lubricant, and a 5/16 in mounting bolt size, with overall dimensions of 114 mm length and 33.3 mm width (MPN SUCSFL204-20MM IP69K).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 114 mm |
| Wd | 33.3 mm |
| Bore | 20 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 5/16 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSFL204-20MM IP69K |
