Iptci Bearings 3G-OTH-112645 — Technical Specifications

Name: Iptci Bearings 3G-OTH-112645 IPTCI BEARINGS 2 Bolt Flange Bearing: Radial Ball, 20 mm Bore, SS, Set Screws, 114 mm Lg, 33.3 mm Wd (MPN SUCSFL204-20MM). Key specifications — Bore Type: Cylindrical; Brand: IPTCI BEARINGS; Lubricant Material: H-1 Grease; Mounting Bolt Size: 5/16 in; Split Housing: Not Split; System of Measurement: Metric.
Brand: Iptci Bearings

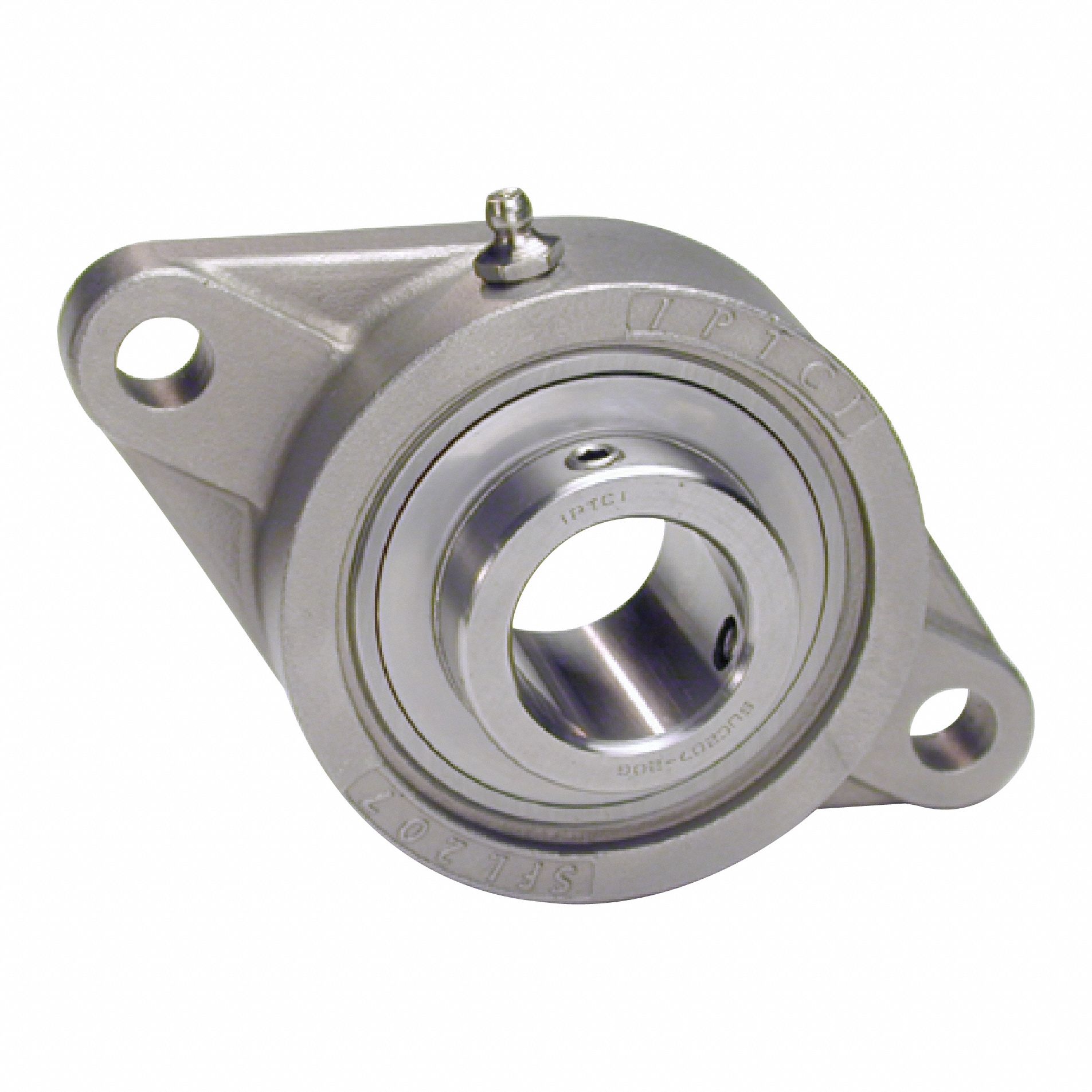

The IPTCI BEARINGS 2 Bolt Flange Bearing is a food-grade flange-mount radial ball bearing with a 20 mm cylindrical bore. It features a stainless steel construction, set screws, and is lubricated with H-1 grease. The bearing has a 114 mm length and 33.3 mm width, with a mounting bolt size of 5/16 in and a not-split housing. This metric-system bearing is identified by manufacturer part number SUCSFL204-20MM.

View Product & Quote

Technical Specifications

Parameter	Value
Lg	114 mm
Wd	33.3 mm
Bore	20 mm
Type	SS, Set Screws
Brand	IPTCI BEARINGS
Bore Type	Cylindrical
Split Housing	Not Split
Lubricant Material	H-1 Grease
Mounting Bolt Size	5/16 in
System Of Measurement	Metric
Manufacturer Part Number	SUCSFL204-20MM
