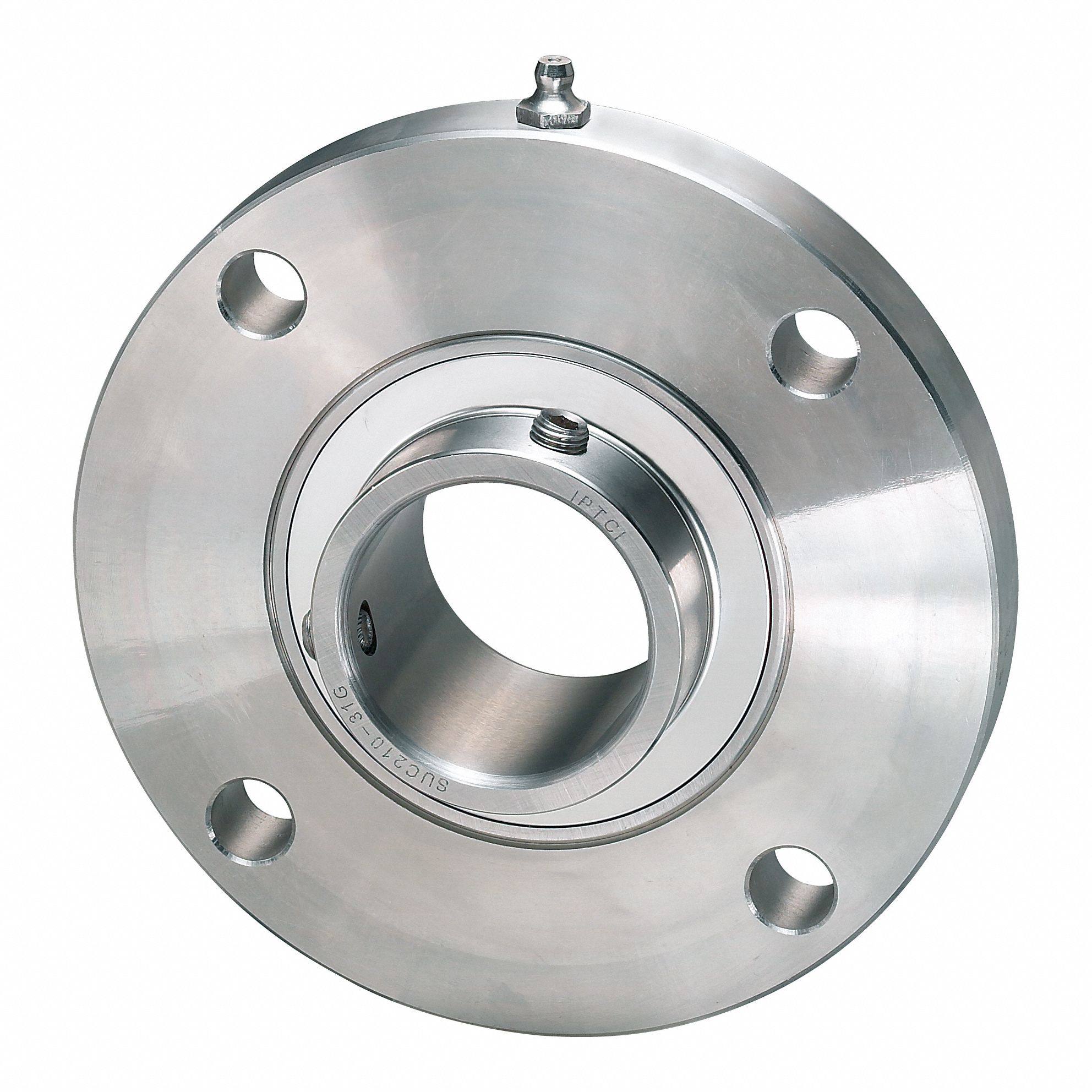

Iptci Bearings 3G-OTH-106565 — Technical Specifications
The IPTCI BEARINGS 4 Bolt Flange Bearing is a washdown flange-mount radial ball bearing with a 45 mm cylindrical bore and a not-split housing. It features set screws, H-1 grease lubricant, and a 3/8 in mounting bolt size, with overall dimensions of 133 mm length and 133 mm width. This metric-system bearing carries the manufacturer part number SUCSFCS209-45MM IP69K.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 133 mm |
| Wd | 133 mm |
| Bore | 45 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 3/8 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSFCS209-45MM IP69K |
