Iptci Bearings 3G-OTH-106146 — Technical Specifications

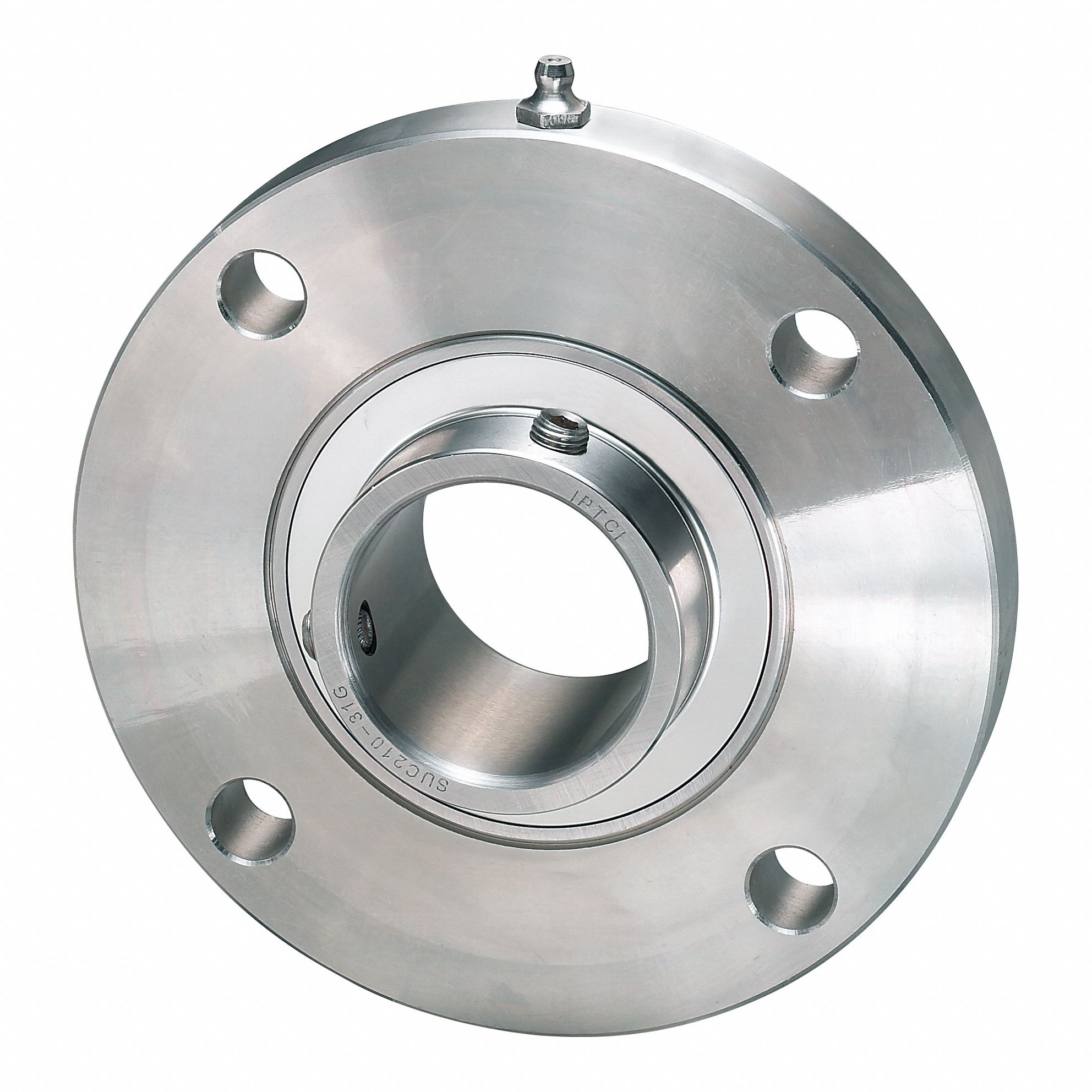

The IPTCI BEARINGS 4 Bolt Flange Bearing is a washdown flange-mount radial ball bearing with a 35 mm cylindrical bore and a stainless steel housing. It features set screws, a not-split housing, and is lubricated with H-1 grease. The mounting bolt size is 3/8 in, and the unit measures 127 mm in length and width. This metric bearing carries the manufacturer part number SUCSFCS207-35MM IP69K.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 127 mm |
| Wd | 127 mm |
| Bore | 35 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 3/8 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSFCS207-35MM IP69K |
