Iptci Bearings 3G-OTH-106121 — Technical Specifications

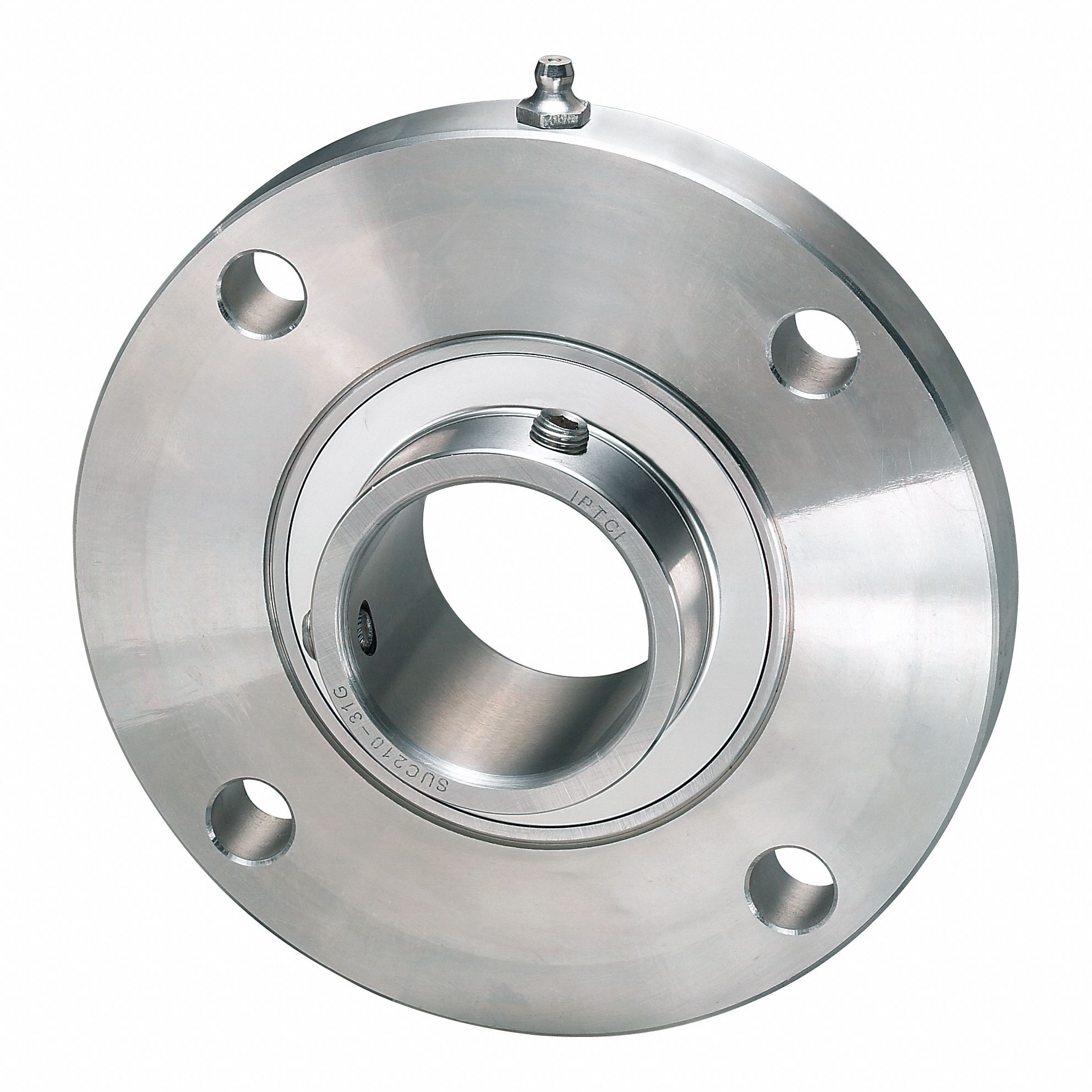

The IPTCI BEARINGS 4 Bolt Flange Bearing is a washdown flange-mount ball bearing with a 1 1/4 in cylindrical bore and a not-split housing. It features H-1 grease lubrication, a 3/8 in mounting bolt size, and set screws, with overall dimensions of 5 in length and 5 in width. This inch-system bearing is identified by manufacturer part number SUCSFCS207-20 IP69K.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 5 in |
| Wd | 5 in |
| Bore | 1 1/4 in |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 3/8 in |
| System Of Measurement | Inch |
| Manufacturer Part Number | SUCSFCS207-20 IP69K |
