Iptci Bearings 3G-OTH-106085 — Technical Specifications

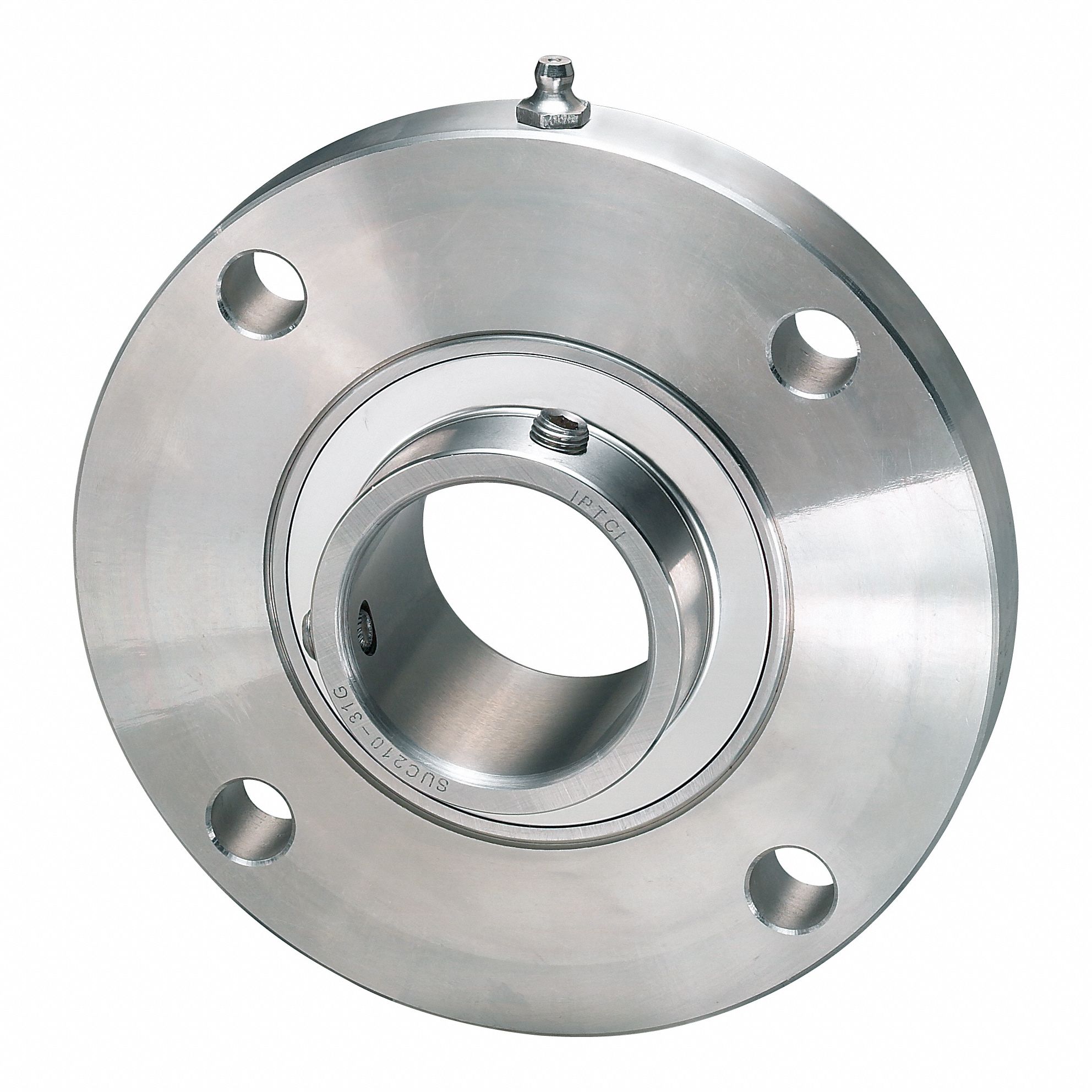

The IPTCI BEARINGS 4 Bolt Flange Bearing is a washdown flange-mount radial ball bearing with a 30 mm cylindrical bore and a not-split housing. It features H-1 grease lubrication, a 5/16 in mounting bolt size, and set screws, with dimensions of 111 mm length and 111 mm width (MPN SUCSFCS206-30MM IP69K). This metric-system bearing is designed for washdown environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 111 mm |
| Wd | 111 mm |
| Bore | 30 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 5/16 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSFCS206-30MM IP69K |
