Iptci Bearings 3G-OTH-104807 — Technical Specifications

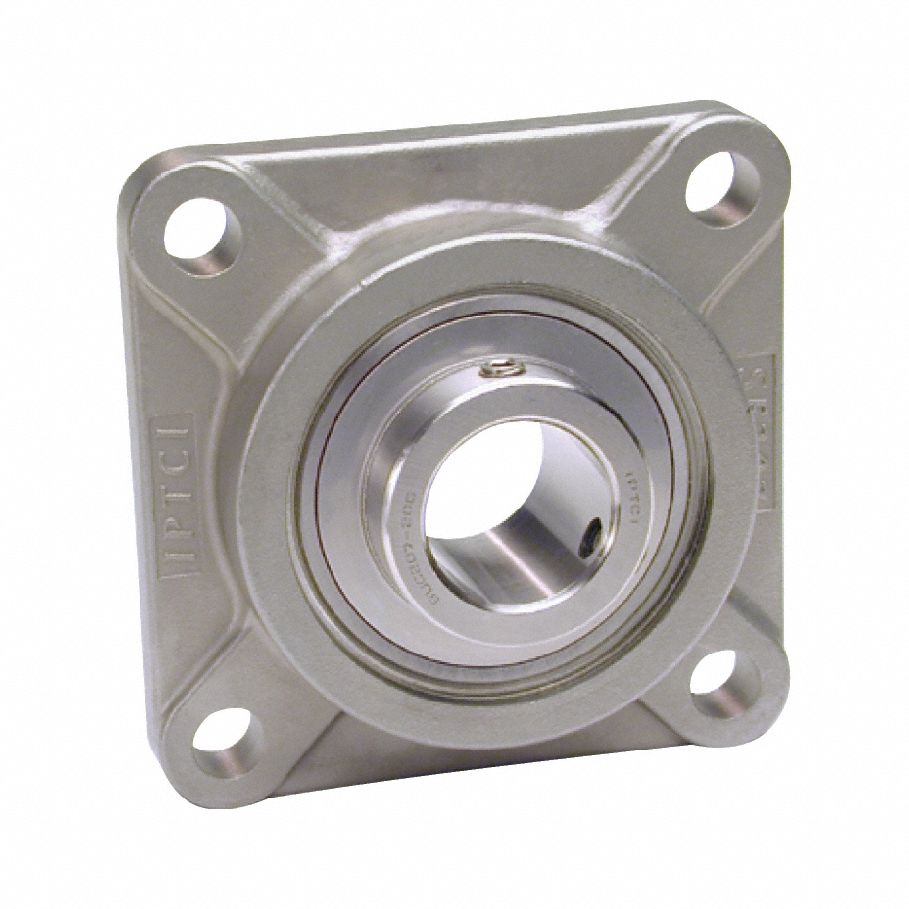

The IPTCI BEARINGS 4 Bolt Flange Bearing is a washdown flange-mount radial ball bearing with a 40 mm cylindrical bore and a not-split housing. It features H-1 grease lubrication, a 1/2 in mounting bolt size, and set screws, with dimensions of 130 mm length and 51.2 mm width (MPN SUCSF208-40MM IP69K).
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 130 mm |
| Wd | 51.2 mm |
| Bore | 40 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 1/2 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSF208-40MM IP69K |
