Iptci Bearings 3G-OTH-103236 — Technical Specifications

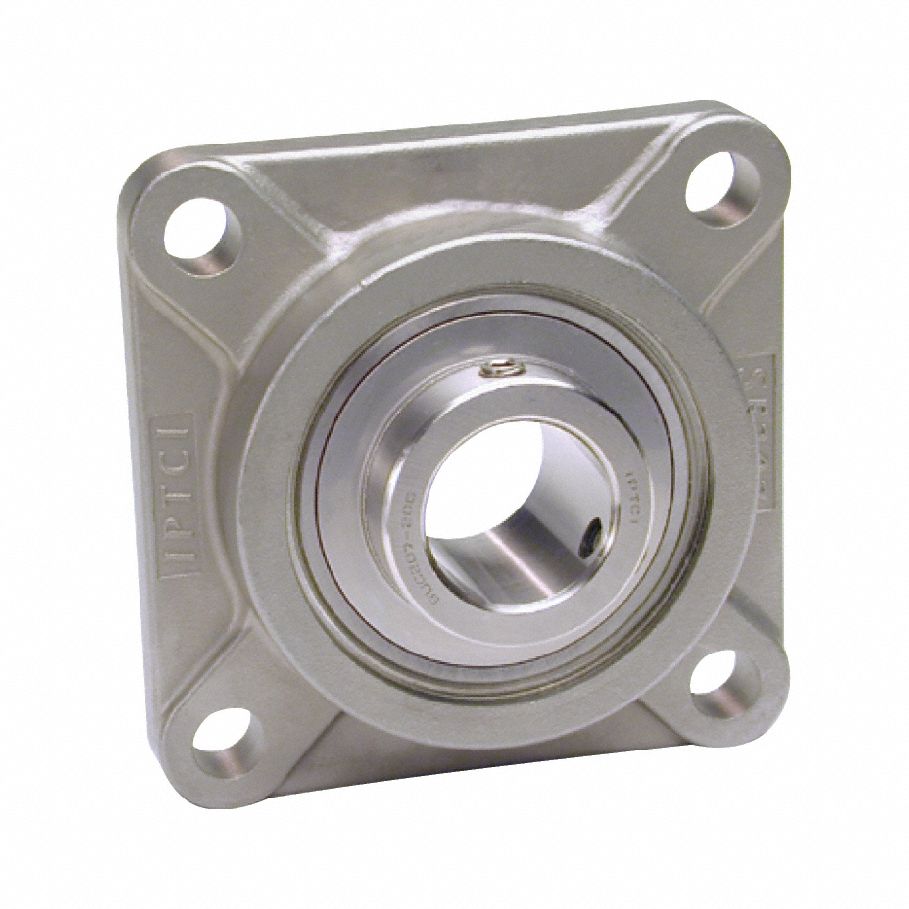

The IPTCI BEARINGS 4 Bolt Flange Bearing is a washdown flange-mount radial ball bearing with a 30 mm cylindrical bore and a stainless steel housing. It features set screws, a not-split housing, and is lubricated with H-1 Grease. The mounting bolt size is 7/16 in, and the unit measures 108 mm in length and 40.2 mm in width, with the manufacturer part number SUCSF206-30MM IP69K.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 108 mm |
| Wd | 40.2 mm |
| Bore | 30 mm |
| Type | SS, Set Screws |
| Brand | IPTCI BEARINGS |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | H-1 Grease |
| Mounting Bolt Size | 7/16 in |
| System Of Measurement | Metric |
| Manufacturer Part Number | SUCSF206-30MM IP69K |
