Ina 3G-OTH-103454 — Technical Specifications

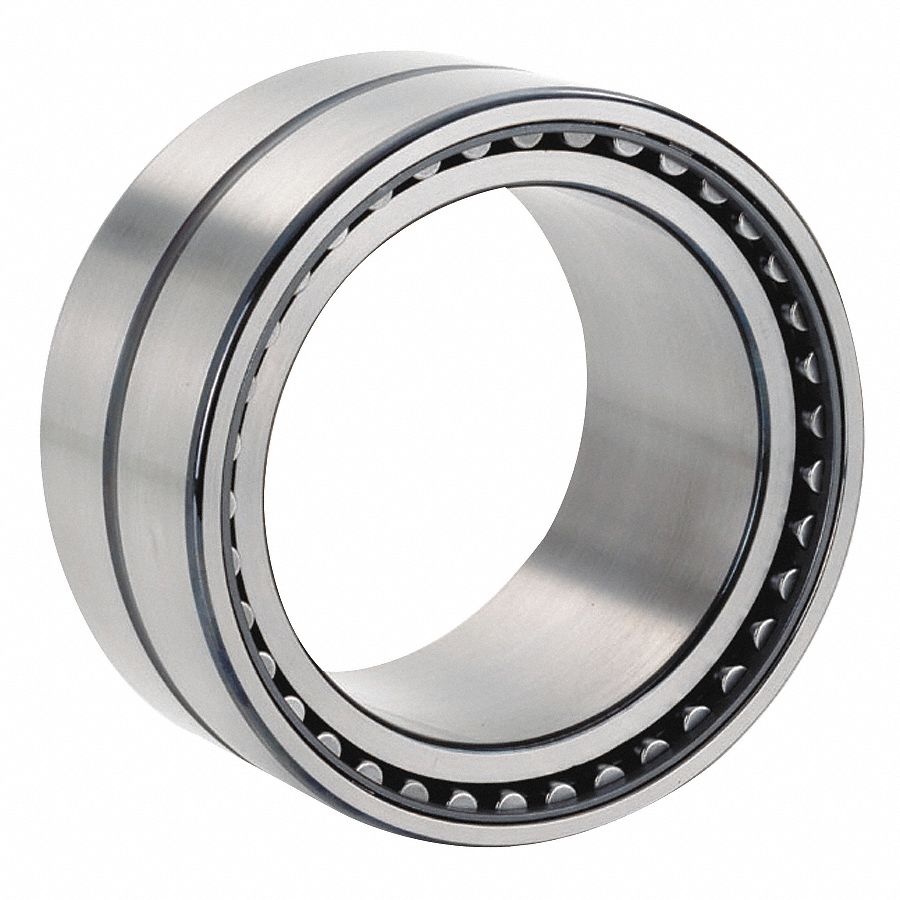

The INA NKI40/30-TV-XL is a heavy-duty needle roller bearing with a single row, metric design, and a 40 mm bore, 55 mm OD, and 30 mm overall width. It is an open bearing made of alloy steel, not a full-complement type, and is identified by the bearing industry number 40/30.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 55 mm |
| Bore | 40 mm |
| Type | 40/30, Open, Alloy Steel |
| Brand | INA |
| Overall Wd | 30 mm |
| Bearing Design | NKI |
| Number Of Rows | One |
| Full Complement | No |
| System Of Measurement | Metric |
| Bearing Industry Number | 40/30 |
| Manufacturer Part Number | NKI40/30-TV-XL |
