Ina 3G-OTH-103489 — Technical Specifications

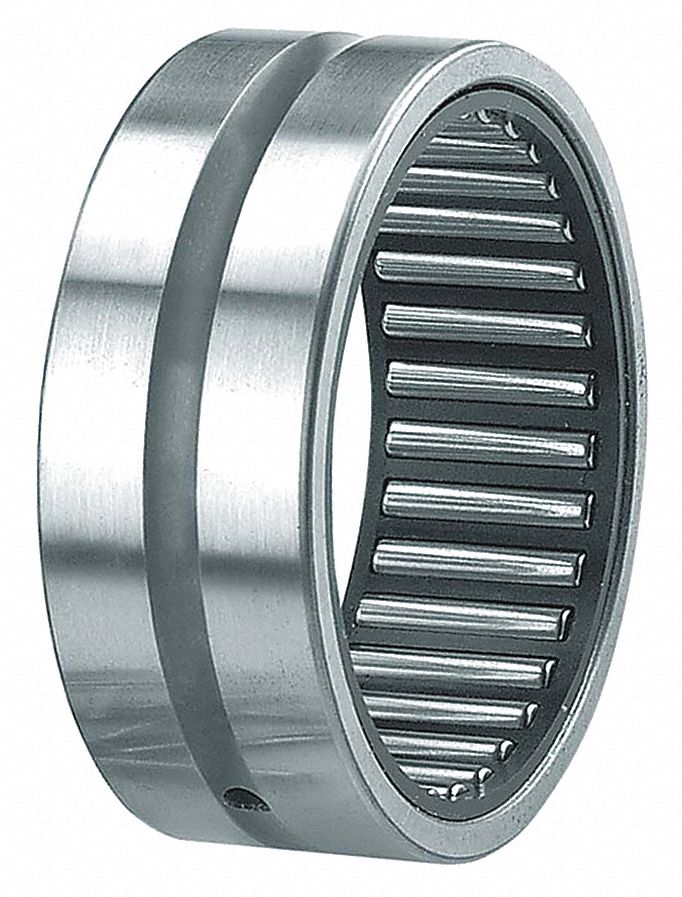

The INA NK45/20-TV-XL is a heavy-duty needle roller bearing with a metric NK design, featuring a single row and a non-full complement configuration. It has a 45 mm bore, 55 mm outer diameter, and 20 mm overall width, constructed from alloy steel with an open design. This bearing is identified by the industry number 45/20 and is manufactured by INA.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 55 mm |
| Bore | 45 mm |
| Type | 45/20, Open, Alloy Steel |
| Brand | INA |
| Overall Wd | 20 mm |
| Bearing Design | NK |
| Number Of Rows | One |
| Full Complement | No |
| System Of Measurement | Metric |
| Bearing Industry Number | 45/20 |
| Manufacturer Part Number | NK45/20-TV-XL |
