Ina 3G-OTH-103402 — Technical Specifications

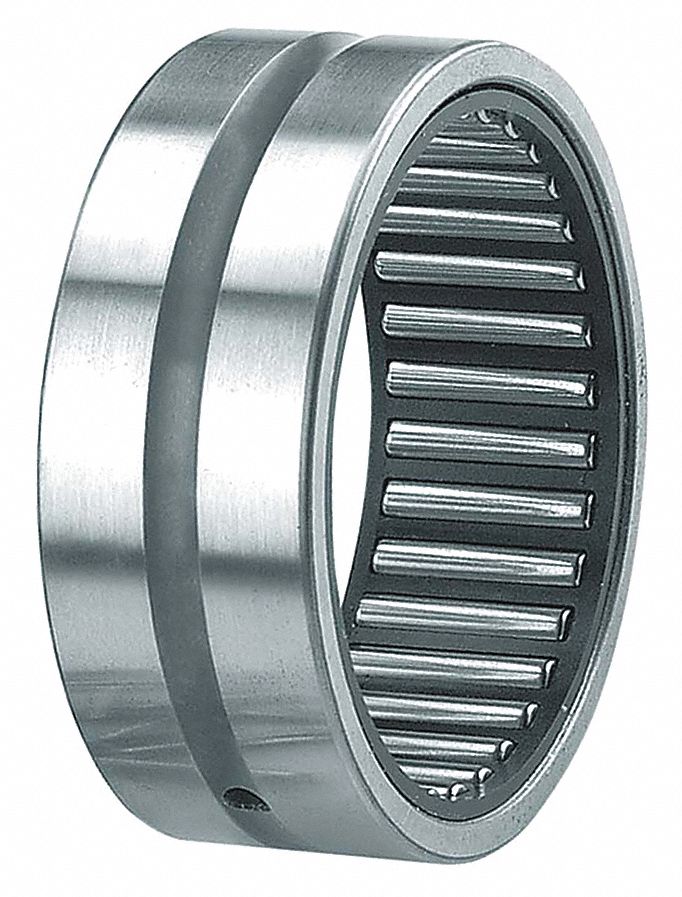

The INA NK40/20-TV-XL is a heavy-duty needle roller bearing from the NK design series, featuring a single row, metric dimensions, and an open configuration. It has a 40 mm bore, 50 mm outer diameter, and 20 mm overall width, constructed from alloy steel. This bearing is not a full-complement type and is identified by the bearing industry number 40/20.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 50 mm |
| Bore | 40 mm |
| Type | 40/20, Open, Alloy Steel |
| Brand | INA |
| Overall Wd | 20 mm |
| Bearing Design | NK |
| Number Of Rows | One |
| Full Complement | No |
| System Of Measurement | Metric |
| Bearing Industry Number | 40/20 |
| Manufacturer Part Number | NK40/20-TV-XL |
