Ina 3G-OTH-108890 — Technical Specifications

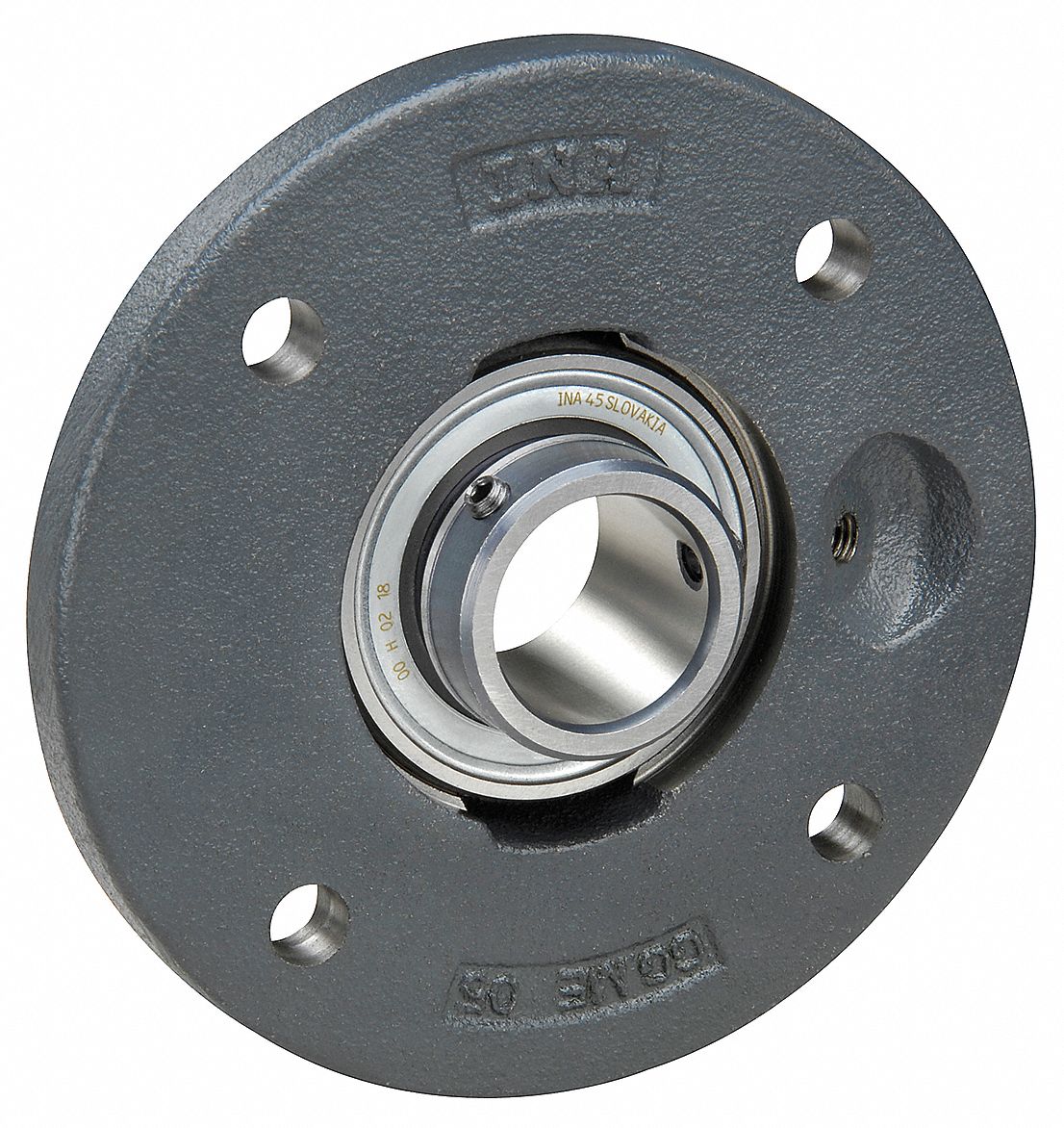

The INA PME25-XL-N is a general purpose 4-bolt flange-mount ball bearing with a 25 mm cylindrical bore and a cast iron housing that is not split. It features an eccentric collar locking mechanism, uses lithium complex grease as lubricant, and requires M8 mounting bolts. This metric unit measures 115 mm in length and 31 mm in width.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 115 mm |
| Wd | 31 mm |
| Bore | 25 mm |
| Type | Cast Iron, Eccentric Collar |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M8 |
| System Of Measurement | Metric |
| Manufacturer Part Number | PME25-XL-N |
