Ina 3G-OTH-115937 — Technical Specifications

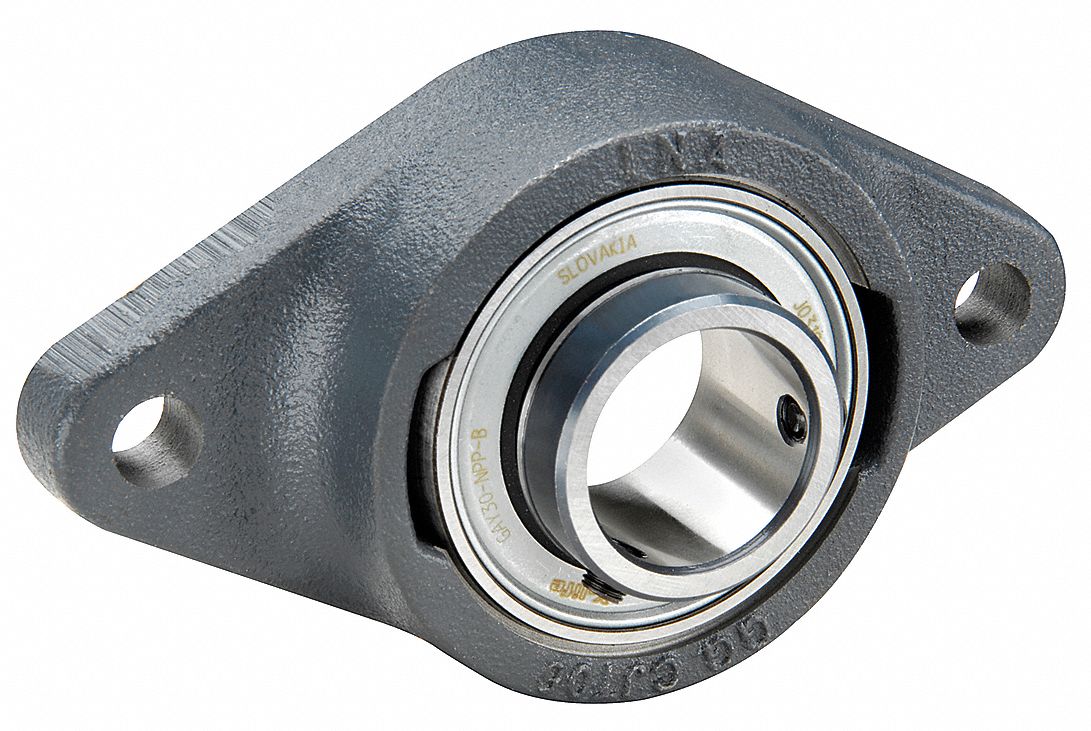

The INA 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 20 mm cylindrical bore, cast iron housing, and set screw locking. It features a non-split housing, uses lithium complex grease, and accepts M10 mounting bolts. This metric unit (MPN PCJTY20-XL-N) measures 61 mm in length and 37 mm in width.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 61 mm |
| Wd | 37 mm |
| Bore | 20 mm |
| Type | Cast Iron, Set Screws |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | PCJTY20-XL-N |
