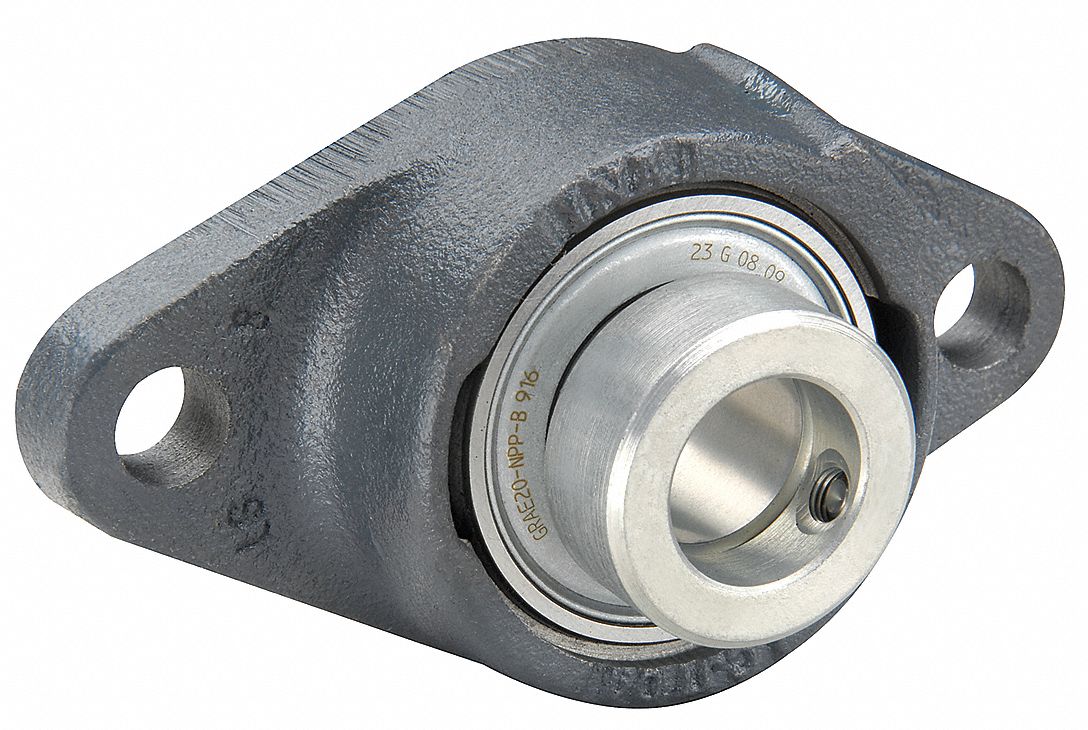

Ina 3G-OTH-112275 — Technical Specifications
The INA 2 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 45 mm cylindrical bore, cast iron housing, and eccentric collar. It features a not-split rhombus housing design, uses lithium complex grease, and accepts M12 mounting bolts. This metric unit (MPN PCJT45-XL-I) is 180 mm long and designed for radial ball bearing applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 180 mm |
| Bore | 45 mm |
| Type | Cast Iron, Eccentric Collar, Rhombus |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M12 |
| System Of Measurement | Metric |
| Manufacturer Part Number | PCJT45-XL-I |
