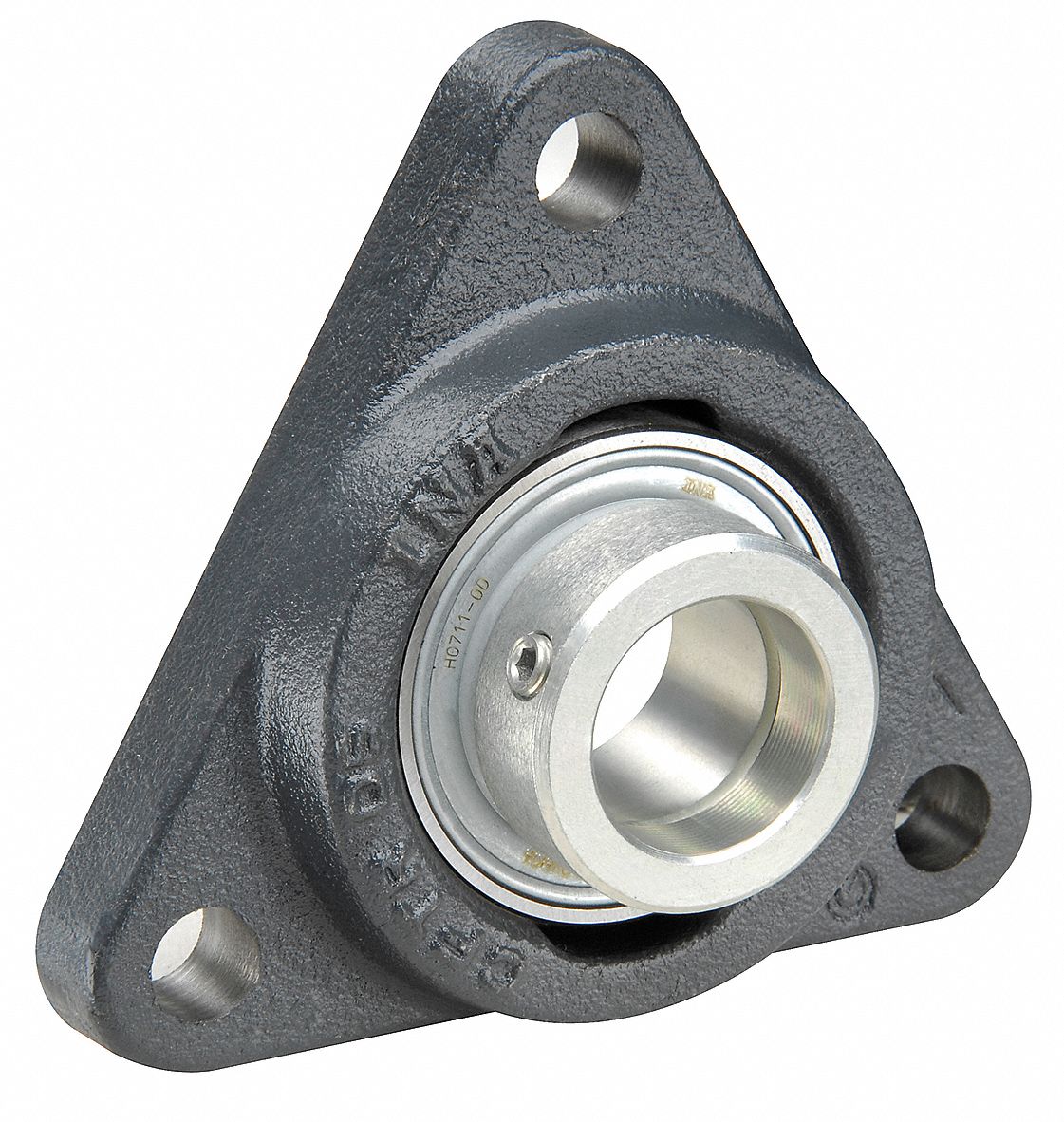

Ina 3G-OTH-110804 — Technical Specifications
The INA 3 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 25 mm cylindrical bore, cast iron housing, and eccentric collar. It is not split, uses lithium complex grease, and has a mounting bolt size of M10. This metric unit measures 97 mm in length and 36 mm in width, with manufacturer part number PCFTR25-XL.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 97 mm |
| Wd | 36 mm |
| Bore | 25 mm |
| Type | Cast Iron, Eccentric Collar |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | PCFTR25-XL |
