Ina 3G-OTH-119338 — Technical Specifications

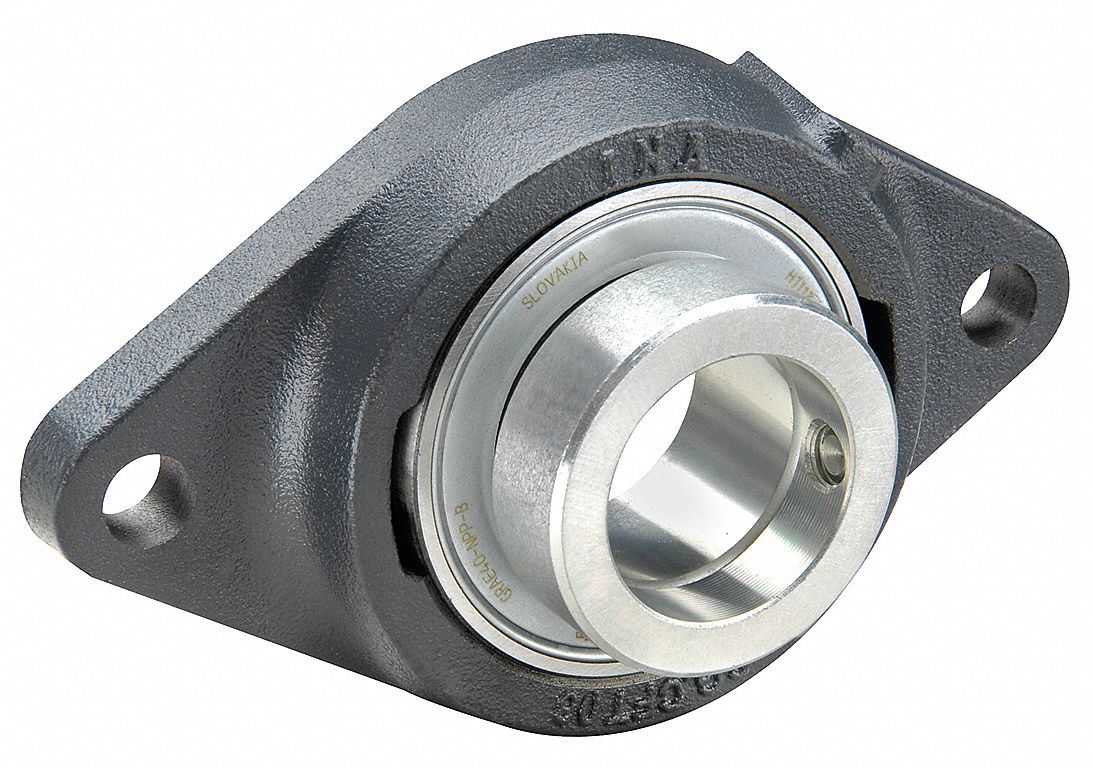

The INA PCFT30-XL is a general-purpose 2-bolt flange-mount ball bearing with a 30 mm cylindrical bore and a cast iron housing that is not split. It features an eccentric collar and is lubricated with lithium complex grease, with a mounting bolt size of M10. This metric unit measures 80 mm in length and 40 mm in width.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 80 mm |
| Wd | 40 mm |
| Bore | 30 mm |
| Type | Cast Iron, Eccentric Collar |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | PCFT30-XL |
