Ina 3G-OTH-118561 — Technical Specifications

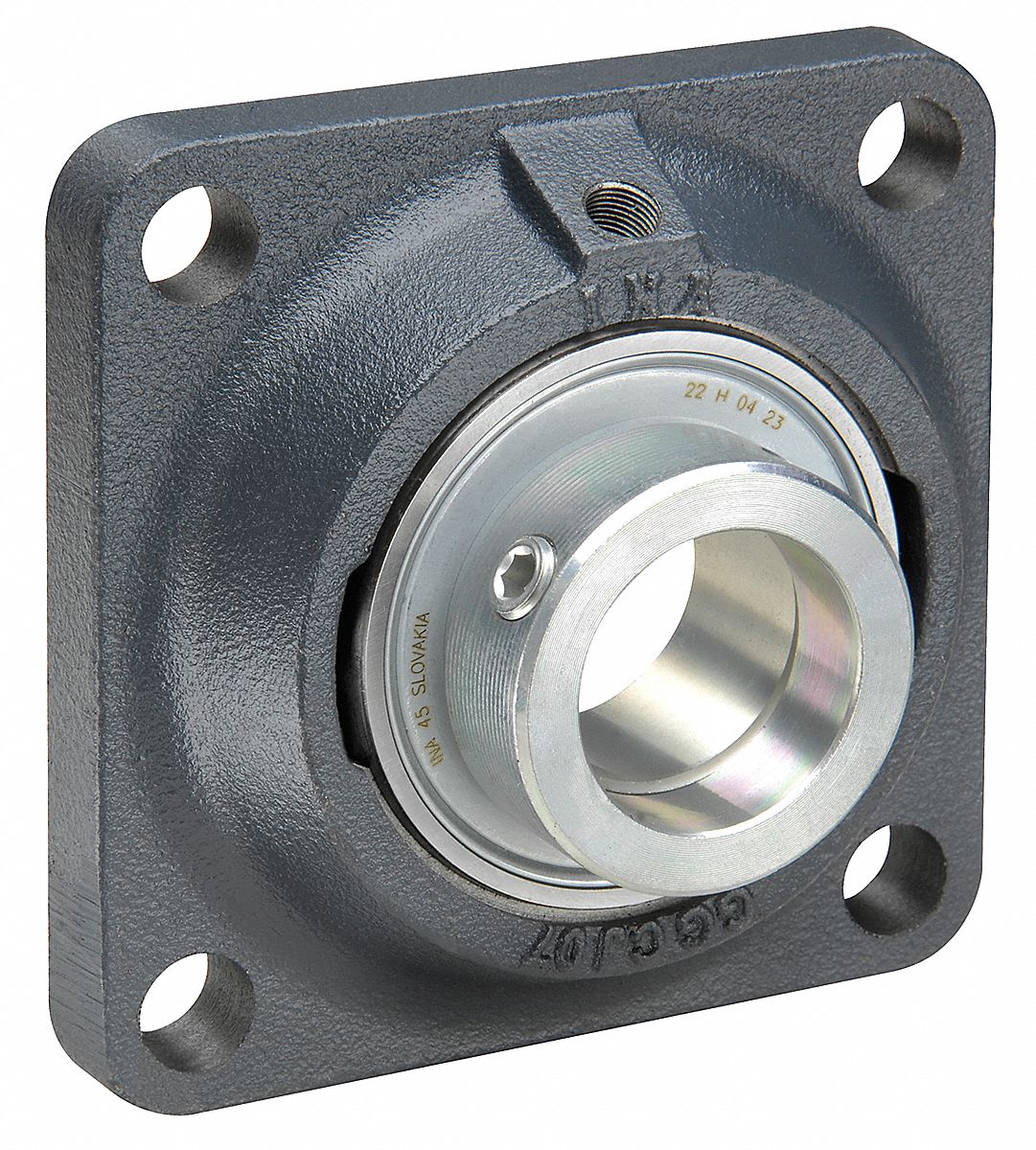

The INA 4 Bolt Flange Bearing is a general purpose flange-mount ball bearing with a 30 mm cylindrical bore, cast iron housing, and eccentric collar. It is not split, uses lithium complex grease, and has a mounting bolt size of M10. The bearing measures 108 mm in length and 40 mm in width, with the manufacturer part number PCF30-XL.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 108 mm |
| Wd | 40 mm |
| Bore | 30 mm |
| Type | Cast Iron, Eccentric Collar |
| Brand | INA |
| Bore Type | Cylindrical |
| Split Housing | Not Split |
| Lubricant Material | Lithium Complex Grease |
| Mounting Bolt Size | M10 |
| System Of Measurement | Metric |
| Manufacturer Part Number | PCF30-XL |
