Ifm 3G-OTH-35789 — Technical Specifications

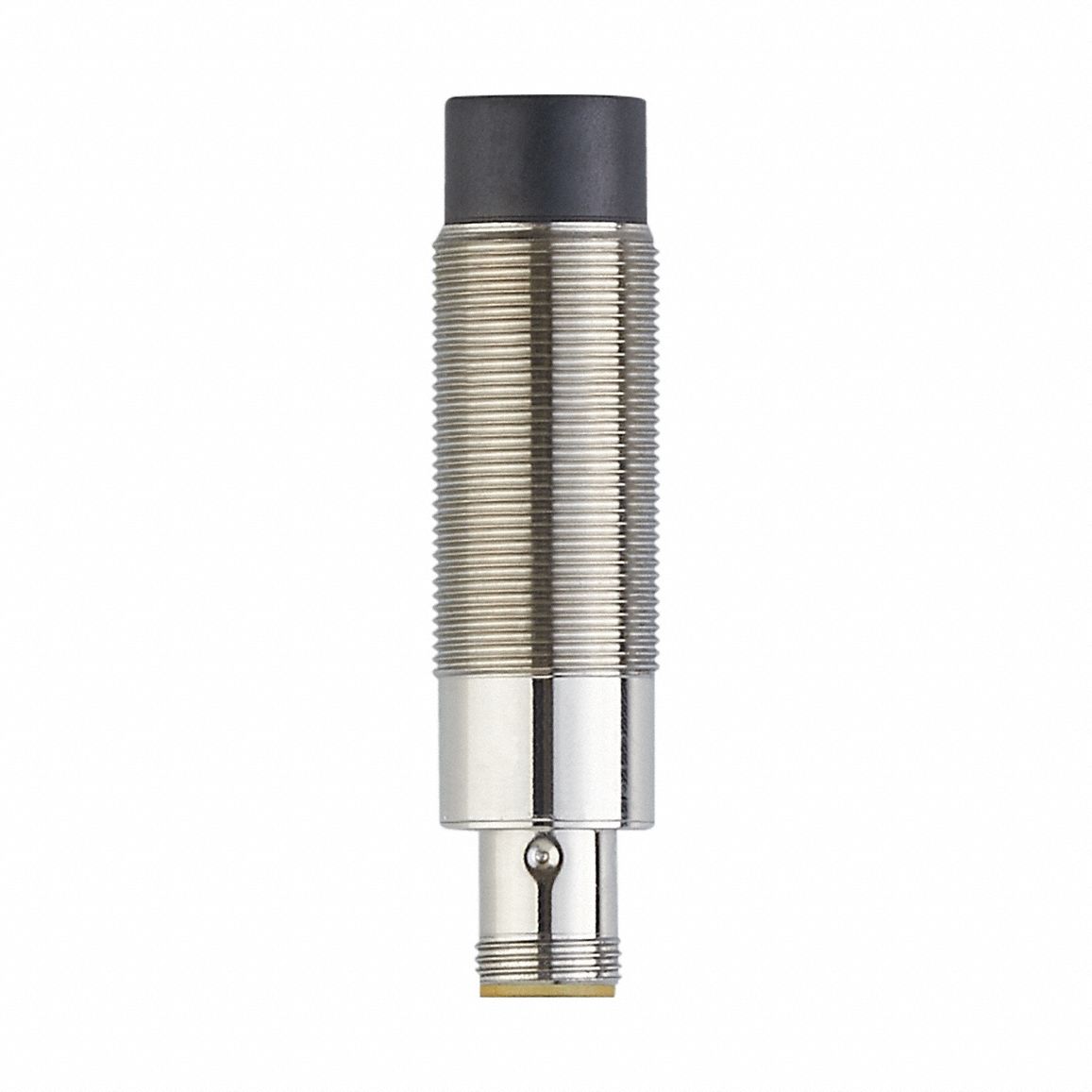

The IFM DTI425 is an IO-Link medium-range HF RFID antenna operating at 13.56 MHz. It features a non-flush mountable design with an M18 x 1 thread, a thermoplastic housing, an IP 69K rating, and an M12 A-coded electrical connection. The device includes a tag communication LED and is classified as Protection Class III.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | IO-Link, Non-Flush Mountable, IP 67/IP 69K, M18 x 1 x 70 mm |
| Brand | IFM |
| Display | Tag Communication LED |
| Material | Thermoplastic |
| IP Rating | IP 69K |
| Mounting Type | Non-Flush Mountable |
| Frequency Type | High Frequency |
| Protection Class | III |
| Operating Frequency | 13.56 MHz |
| Mounting Thread Size | M18 x 1 |
| Electrical Connection | M12 A-Coding |
| Manufacturer Part Number | DTI425 |
