Ifm 3G-OTH-35725 — Technical Specifications

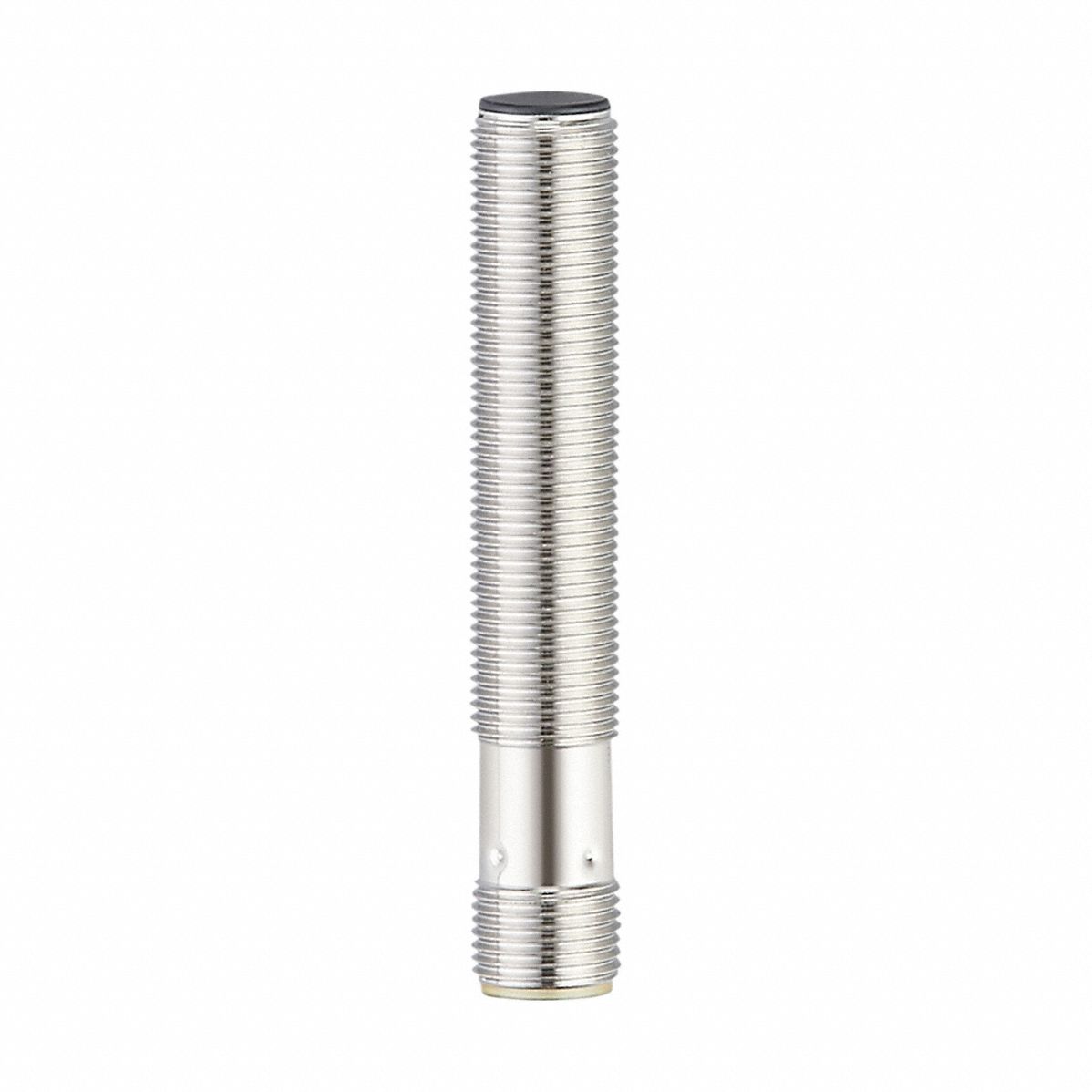

The IFM Read/Write RFID Antenna (MPN DTI410) is an IO-Link medium-range HF RFID device operating at 13.56 MHz. It features a flush-mountable thermoplastic housing with an M12 x 1 mounting thread, an M12 A-coded electrical connection, and a Tag Communication LED display. The device is rated IP 67 and Protection Class III.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | IO-Link, Flush Mountable, IP 67/IP 69K, M12 x 1 x 70 mm |
| Brand | IFM |
| Display | Tag Communication LED |
| Material | Thermoplastic |
| IP Rating | IP 67 |
| Mounting Type | Flush Mountable |
| Frequency Type | High Frequency |
| Protection Class | III |
| Operating Frequency | 13.56 MHz |
| Mounting Thread Size | M12 x 1 |
| Electrical Connection | M12 A-Coding |
| Manufacturer Part Number | DTI410 |
