Ifm 3G-OTH-13624 — Technical Specifications

Name: Ifm 3G-OTH-13624 IFM IO-Link Master: M12 Connector, 16 Digital Inputs, 8 Digital Outputs, Ethernet/IP/IO-Link, AL1103. Key specifications — Transmission Type: COM1 (4.8 kBaud); Operating Voltage: 20 to 30V DC; Protection Features: IP65; Communication Interface: IO-Link; Electrical Connection Type: M12 Connector.
Brand: Ifm

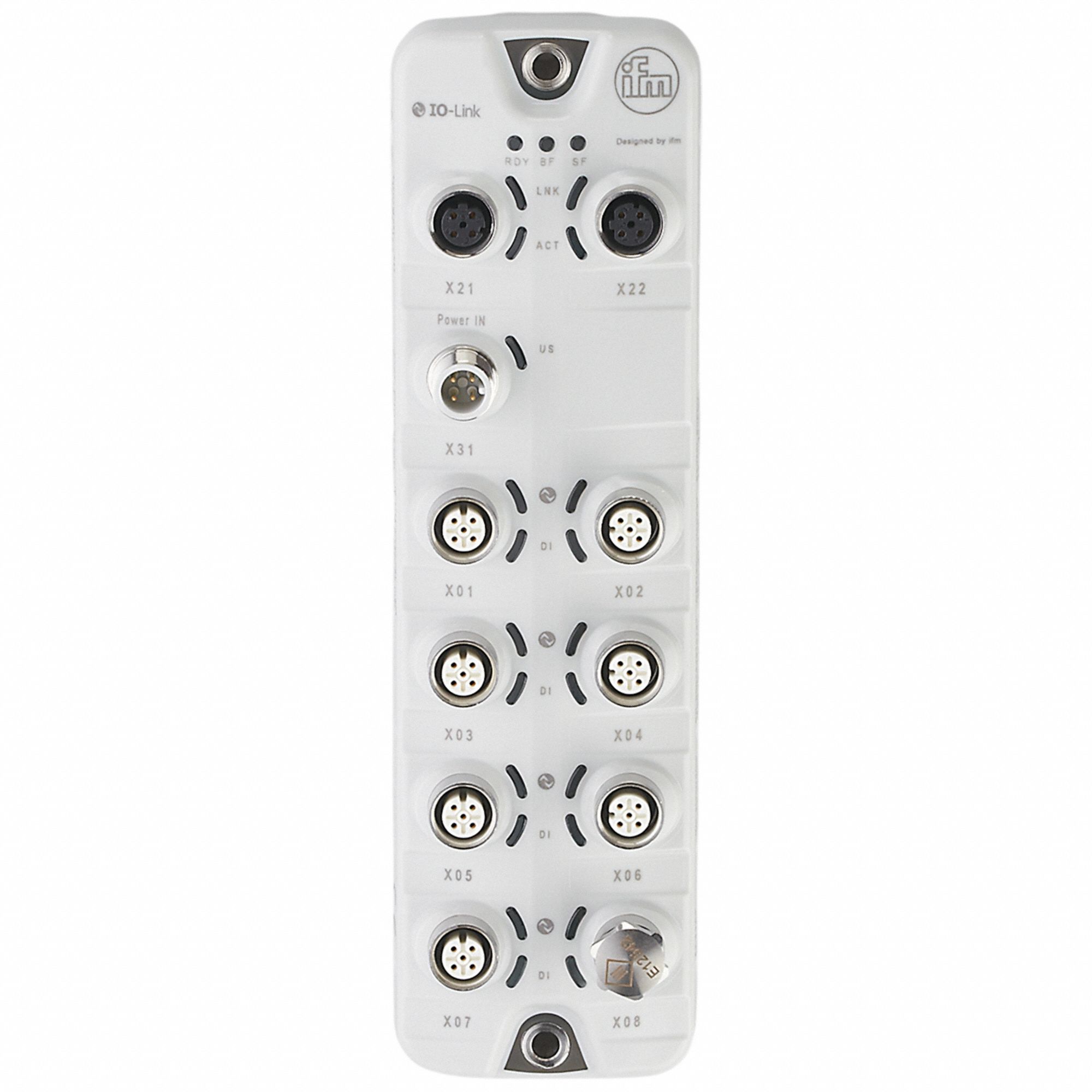

The IFM IO-Link Master: M12 Connector (SKU 801TK3, part number AL1103) is an IO-Link master designed for food industry applications. It operates on 20 to 30V DC with COM1 (4.8 kBaud) transmission, features IP65 protection, and uses an M12 connector for electrical connection. This unit provides 16 digital inputs and 8 digital outputs, supporting Ethernet/IP and IO-Link communication.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Ethernet/IP/IO-Link, AL1103
Digital Inputs	16
Digital Outputs	8
Operating Voltage	20 to 30V DC
Transmission Type	COM1 (4.8 kBaud)
Protection Features	IP65
Communication Interface	IO-Link
Manufacturer Part Number	AL1103
Electrical Connection Type	M12 Connector
