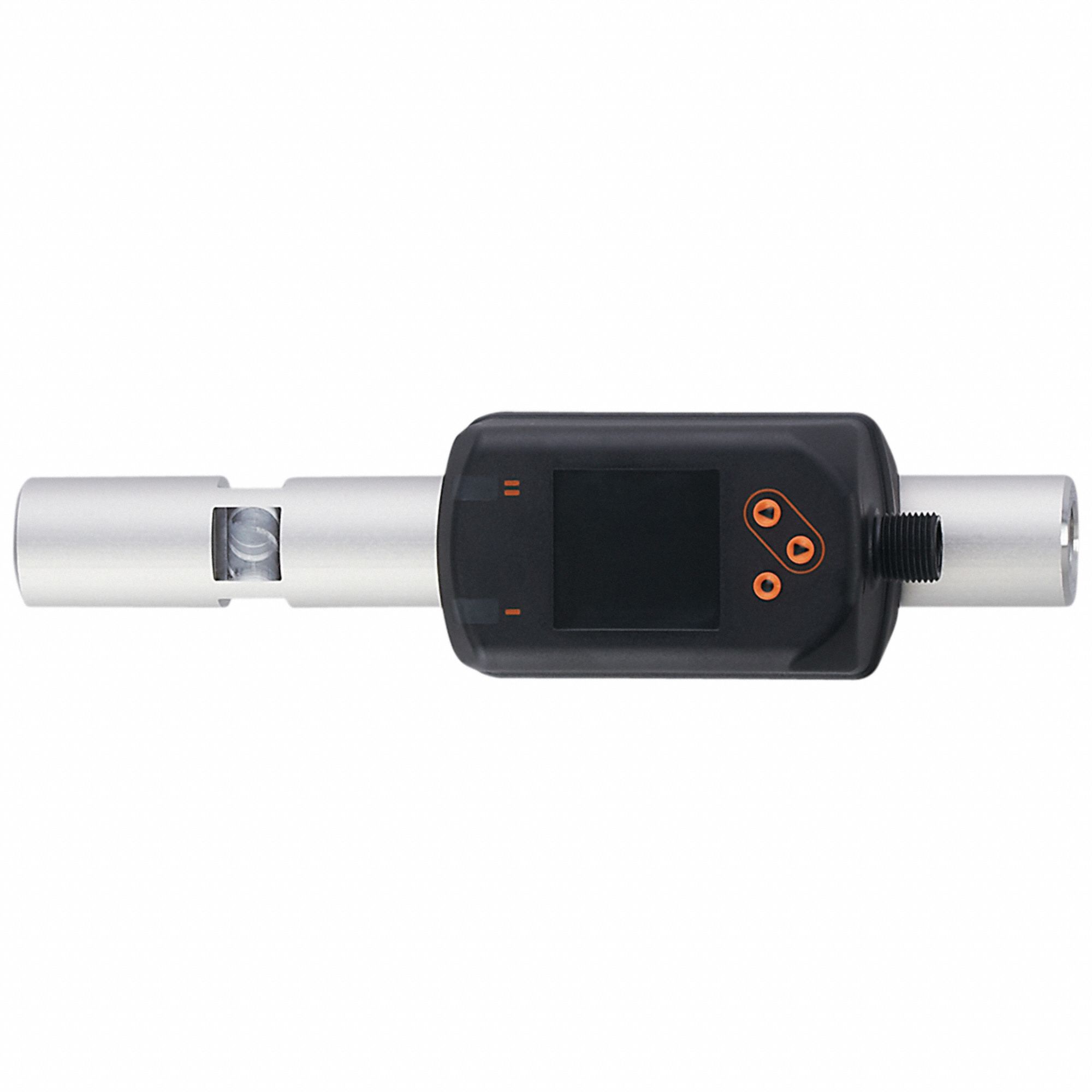

Ifm 3G-OTH-90430 — Technical Specifications
The IFM Industrial Flowmeter with M12 Connector (SKU 801TJ5, MPN SD5500) is a flowmeter for compressed air featuring a switching output signal. It operates on 18 to 30V DC, has a process connection of 1/4 in DN8, and offers a flow rate measuring range of 0.8 to 250 lpm with a pressure measuring range of -1 to 16 bar. The device includes short circuit protection and has an overall length of 182 mm with an insertion length of 78.9 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| DN8 | 1/4 in |
| Type | 78.9 mm, PNP/NPN, Compressed Air, -1 to 16 bar |
| Brand | IFM |
| For Gas Type | Compressed Air |
| Output Signal | Switching |
| Burst Pressure | 928 psi |
| Overall Length | 182 mm |
| Insertion Length | 78.9 mm |
| Operating Voltage | 18 to 30V DC |
| Process Connection | 1/4 in DN8 |
| Protection Features | Short Circuit Protection |
| Manufacturer Part Number | SD5500 |
| Pressure Measuring Range | -1 to 16 bar |
| Flow Rate Measuring Range | 0.8 to 250 lpm |
