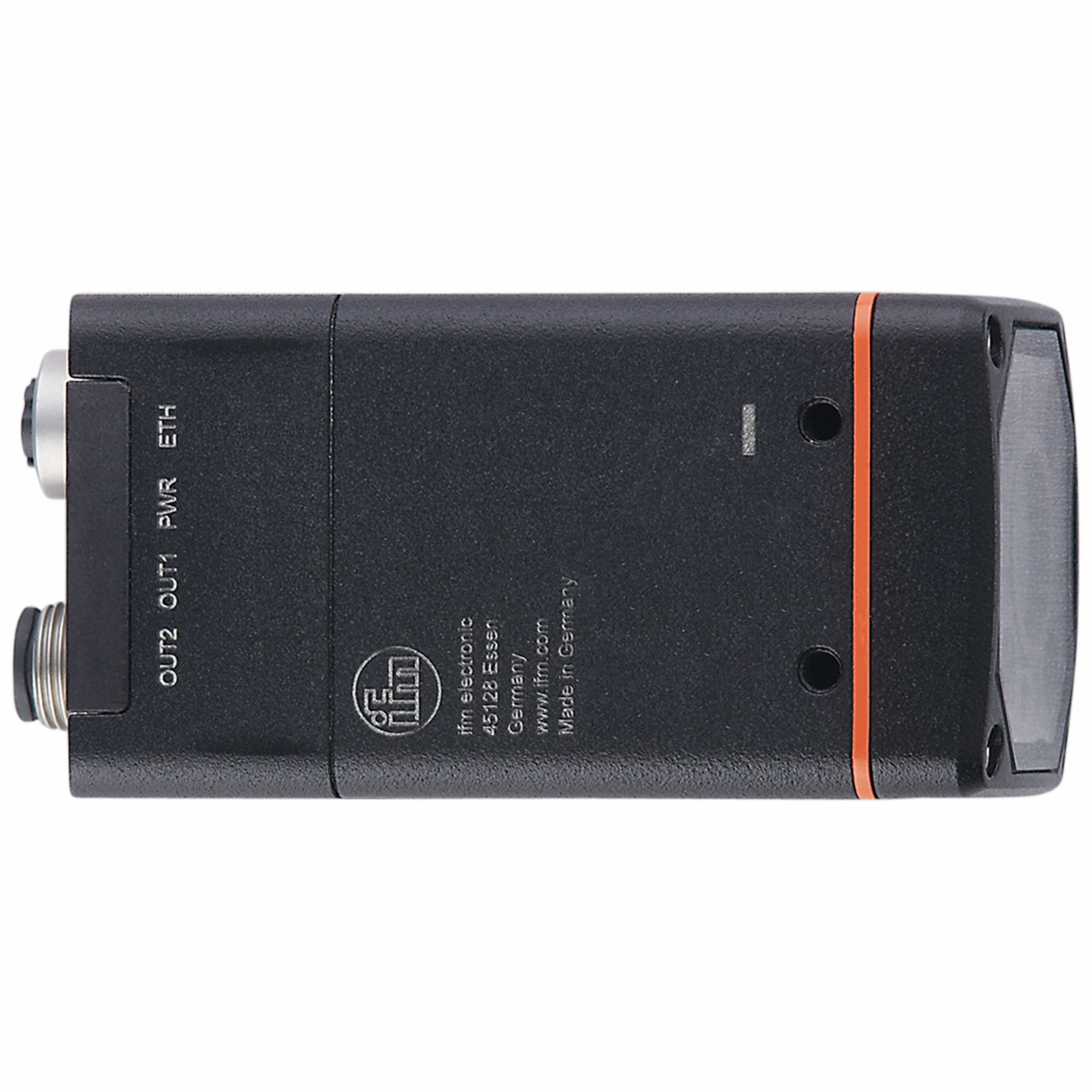

Ifm 3G-OTH-34311 — Technical Specifications
The IFM Multicode Reader: Telephoto Lens (SKU 801TF2, MPN O2I505) is an industrial Ethernet multicode reader designed for harsh environments. It features an IP65 rating, a 1280 x 960 px image resolution, a max reading rate of 40 Hz, and operates on 18 to 30V DC. The device includes infrared light and a PNP/NPN interface, with dimensions of 86 mm x 45 mm x 45 mm.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Infrared Light, Ethernet, PNP/NPN, 86 mm x 45 mm x 45 mm, IP65 |
| Brand | IFM |
| IP Rating | IP65 |
| Image Resolution | 1280 x 960 px |
| Max Reading Rate | 40 Hz |
| Operating Voltage | 18 to 30V DC |
| Communication Interface | Ethernet |
| Manufacturer Part Number | O2I505 |
