Ifm 3G-OTH-10871 — Technical Specifications

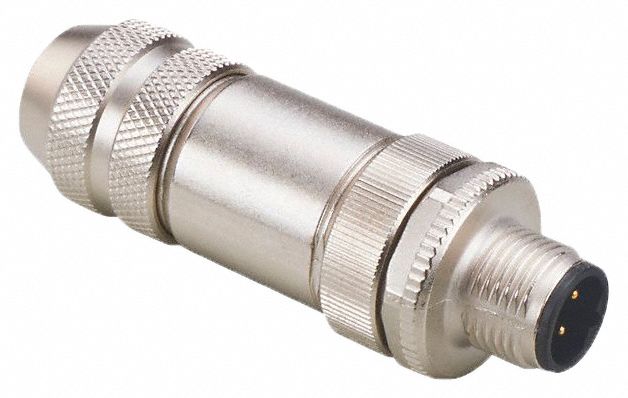

The IFM M12 Circular Connector (SKU 787GG7, MPN E12355) is a field-wireable industrial connector with B coding for Profibus and Interbus applications. This straight, 4-pin pin-type connector features a zinc die-cast housing, gold-plated contacts, screw terminals, and a 70V DC voltage rating. It offers IP67 protection with an M12 male thread for front mounting.
Technical Specifications
| Parameter | Value |
|---|---|
| Pin | 4 |
| Type | M12 Male Thread, IP67, Screw Terminals, Straight |
| Brand | IFM |
| Coding | B |
| IP Rating | IP67 |
| Application | Profinet |
| Thread Size | M12 |
| Wiring Type | Screw Terminals |
| Mounting Type | Front Mounting |
| Mounting Style | Male Thread |
| Voltage Rating | 70V DC |
| Connection Type | Gold-Plated Contacts |
| Housing Material | Zinc Die-Cast |
| Connector Body Type | Pin |
| Connector Application | B-Coded for Profibus & Interbus |
| Connector Orientation | Straight |
| Manufacturer Part Number | E12355 |
