Ifm 3G-OTH-32043 — Technical Specifications

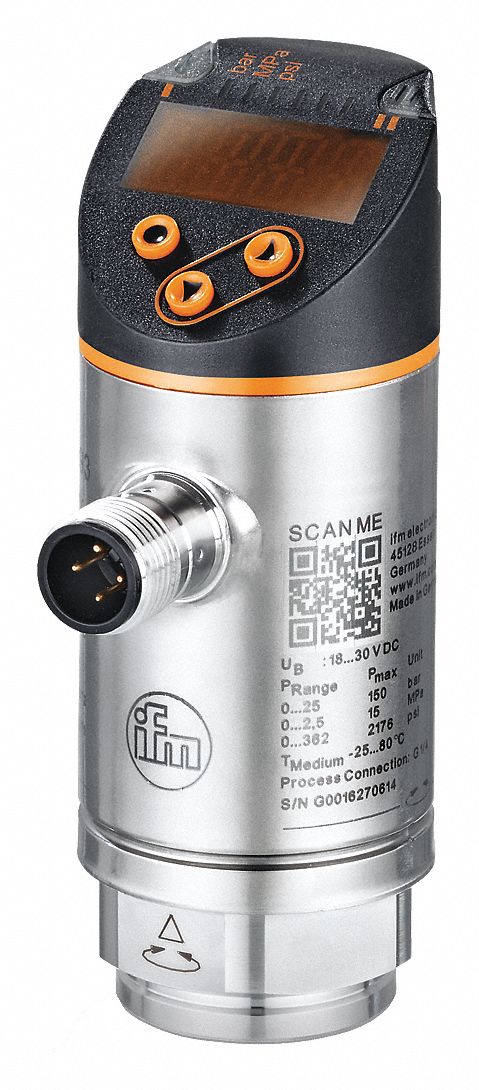

The IFM PN7270 is a digital pressure sensor from the PN series, designed for gas media. It features a stainless steel housing, fluorocarbon wetted materials, a 1/4 in NPT pressure connection, and a 4-pin M12 connector. The sensor has an output current rating of 0.2 A @ 140 °F and is available with SPST, 0 psi – 5,800 psi, PNP/NPN switching outputs.
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | IFM |
| Series | PN |
| Product Type | Digital Pressure Sensor |
| Compatible Media | Gas |
| Housing Material | Stainless Steel |
| Wetted Materials | Fluorocarbon |
| Output Current Rating | 0.2 A @ 140 °F |
| Manufacturer Part Number | PN7270 |
| Pressure Connection Type | 1/4 in NPT |
| Electrical Connection Type | 4 Pin M12 Connector |
