Ifm 3G-OTH-178916 — Technical Specifications

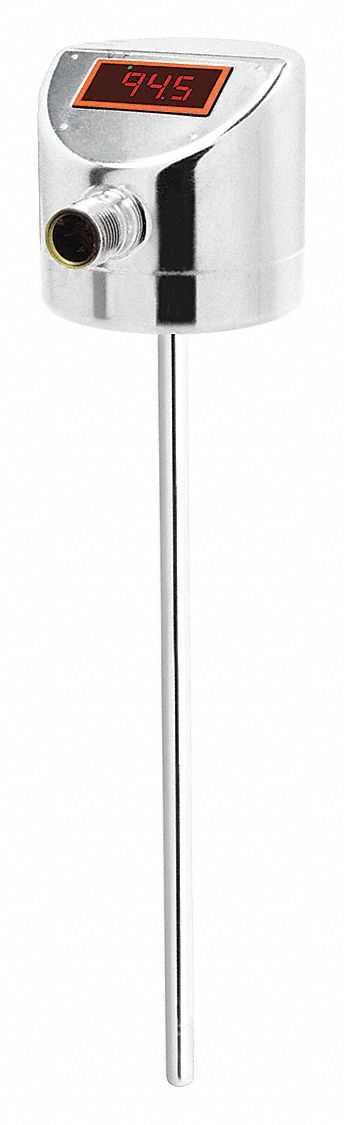

The IFM TD Series Sanitary Temperature Transmitter with Display (SKU 40KH07, MPN TD2243) is a Pt1000 RTD device with a 4 to 20mA DC output and a temperature range of 0 °F to 300 °F. It requires 18 to 32V DC power, offers an accuracy of ±0.54°F, 0.1%, and connects via a 6 mm clamp fitting 6mm diameter. The transmitter mounts with a clamp or thermowell (not included).
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | IFM |
| Output | 4 to 20mA DC |
| Series | TD |
| Degrees F | 0 to 300 |
| Power Required | 18 to 32V DC |
| Temperature Range | 0 °F to 300 °F |
| Process Connection | 6 mm clamp fitting 6mm diameter |
| Sensing Element Type | Pt1000 RTD |
| Temperature Accuracy | ±0.54°F, 0.1% |
| Transmitter Mount Type | Mount with Clamp or Thermowell (not included) |
| Manufacturer Part Number | TD2243 |
