Iec 3G-OTH-20907 — Technical Specifications

Name: Iec 3G-OTH-20907 IEC Supplementary Protector: 25 A Amps, 240V AC, 260 mA Rated Residual Current, A, 10kA at 240V AC (MPN M9R44225). Key specifications — AC Voltage Rating: 240V AC; Curve Type: A; Max. AIR Rating: 10kA at 240V AC; Series: GFP.
Brand: Iec

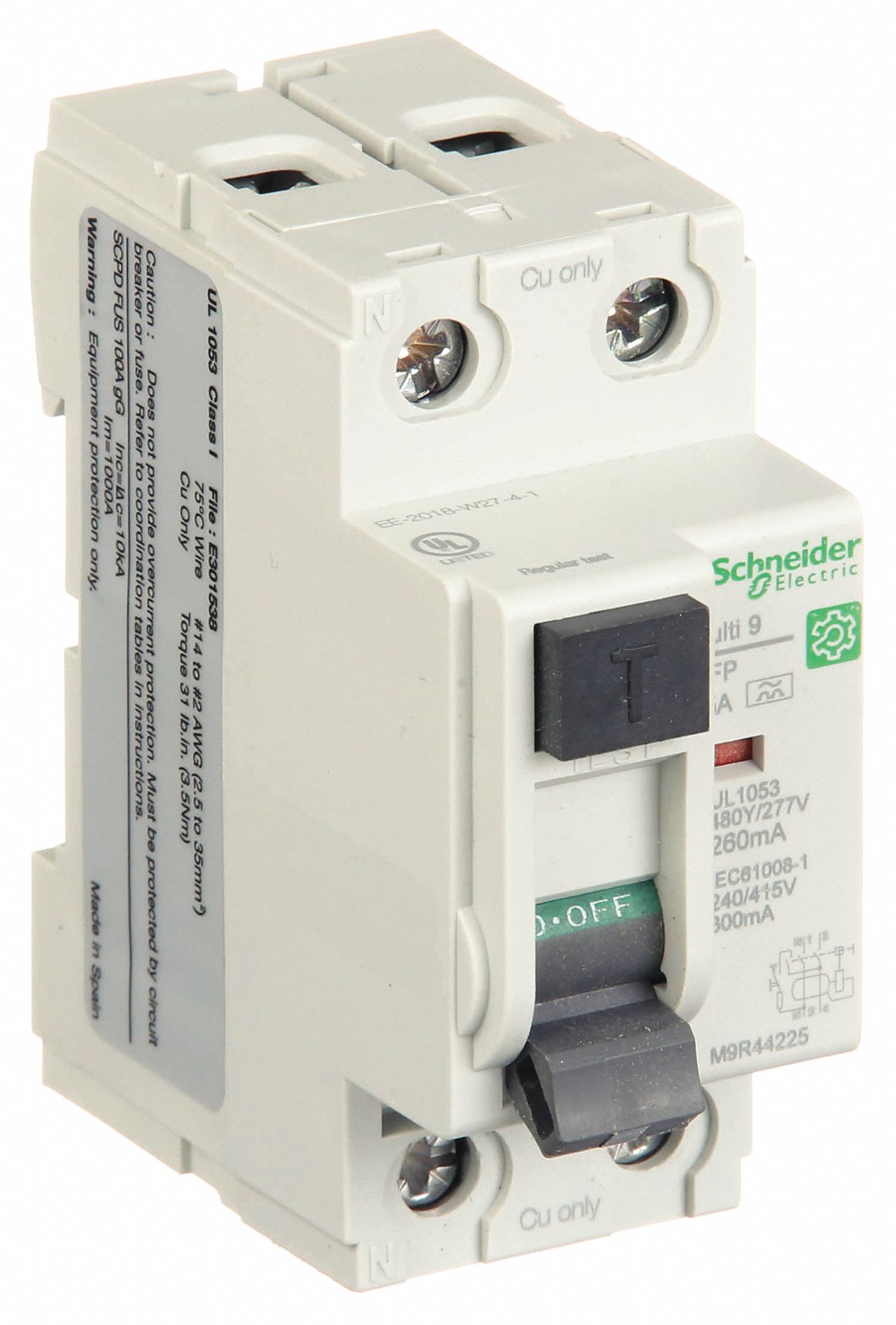

The IEC Supplementary Protector: 25 A Amps is a UL1053 DIN Rail-Mount Ground Fault Protector from the GFP series. It features a 25 A current rating, 240V AC voltage rating, 260 mA rated residual current, and a Curve Type A characteristic. The device has a Max. AIR Rating of 10kA at 240V AC and is identified by manufacturer part number M9R44225.

View Product & Quote

Technical Specifications

Parameter	Value
AC	240V
Type	260 mA Rated Residual Current, A, 10kA at 240V AC
Series	GFP
Curve Type	A
Max. AIR Rating	10kA at 240V AC
AC Voltage Rating	240V AC
Manufacturer Part Number	M9R44225
