Ideal Industries 3G-OTH-171575 — Technical Specifications

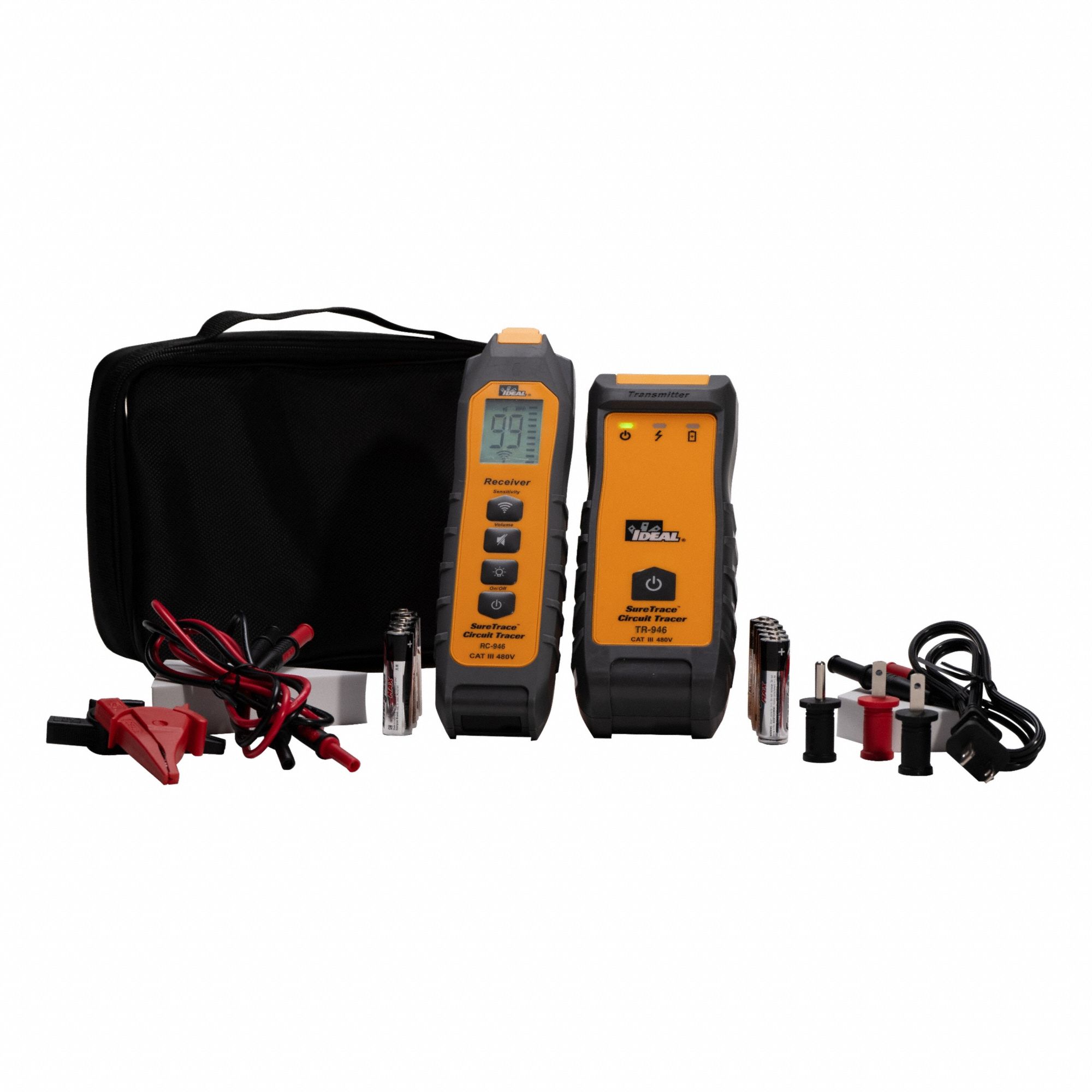

The IDEAL INDUSTRIES Circuit Tracer Kit (MPN 61-946) is a circuit breaker finder for tracing energized circuits from 0 to 480V AC. It features a plug-in connection, a signal output current of 82 mA rms to 50 Ohms, and an operating frequency of de-energized 32.768 kHz for tracing in non-metallic conduit. This CAT III 480V rated kit is designed for locating circuits in non-metallic conduit.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | For Energized Circuit Type, CAT III 480V, Digital |
| Brand | IDEAL INDUSTRIES |
| Product Type | Circuit Breaker Finder |
| Voltage Range | 0 to 480V AC |
| Tracing Locations | Non-Metallic Conduit |
| Operating Frequency | De-Energized 32.768 kHz |
| Signal Output Current | 82 mA rms to 50 Ohms |
| Circuit Connection Type | Plug-In |
| Manufacturer Part Number | 61-946 |
