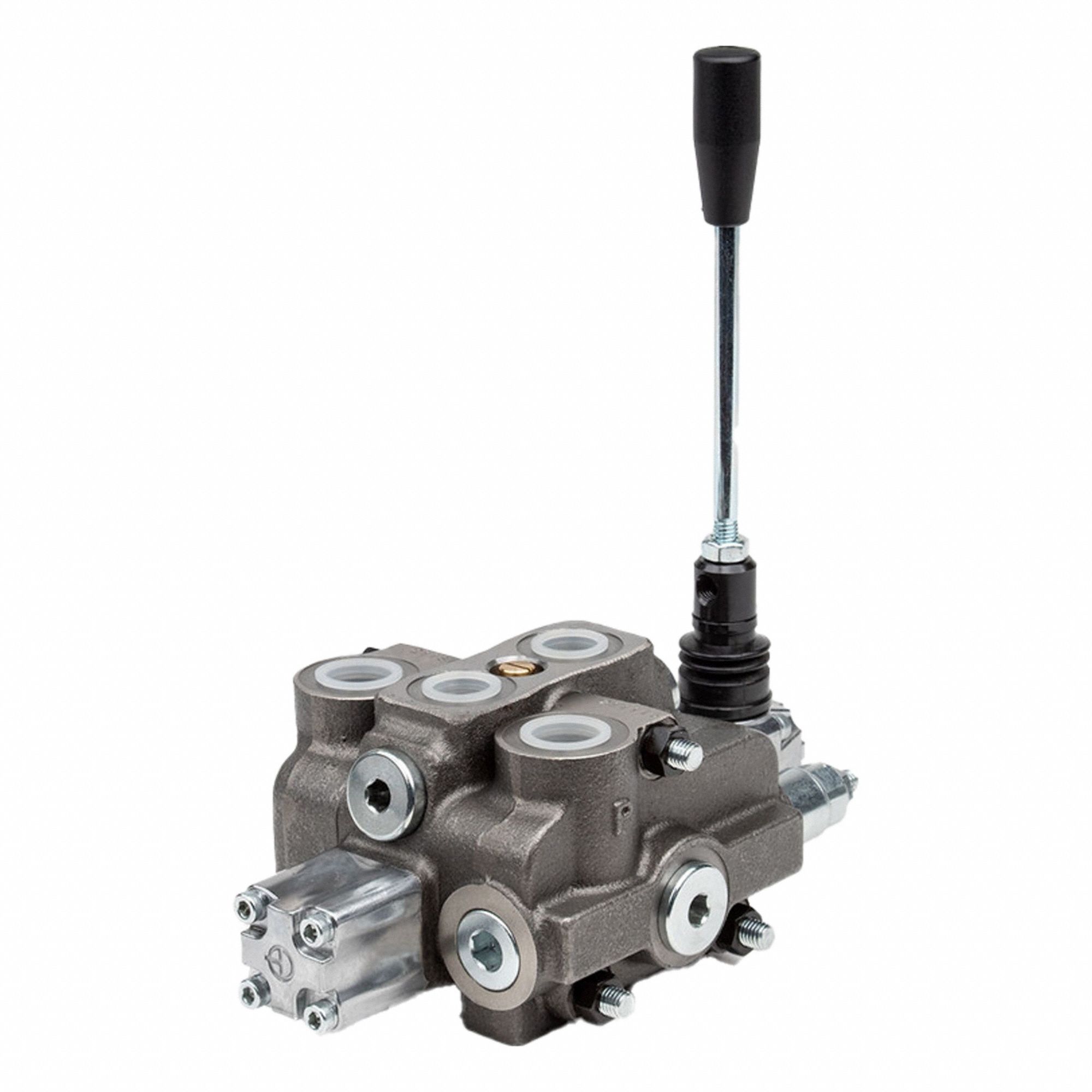

Hydro Custom 3G-OTH-169246 — Technical Specifications
The HYDRO CUSTOM Hydraulic Directional Control Valve (MPN 228312) is a four-way, three-position stack valve working section with a maximum flow rate of 13 gpm. It features manual actuation, spring center to neutral spool action, and inlet port connections. Work connections are #8 SAE O-Ring Boss, and the pressure connection size is #10.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Three Positions, 13 gpm Flow Rate - Max |
| Brand | HYDRO CUSTOM |
| Spool Action | Spring Center To Neutral |
| Port Connections | Inlet |
| Actuation Mechanism | Manual |
| Work Connection Size | #8 |
| Work Connection Type | SAE O-Ring Boss |
| Manufacturer Part Number | 228312 |
| Pressure Connection Size | #10 |
