Hvac 3G-OTH-69244 — Technical Specifications

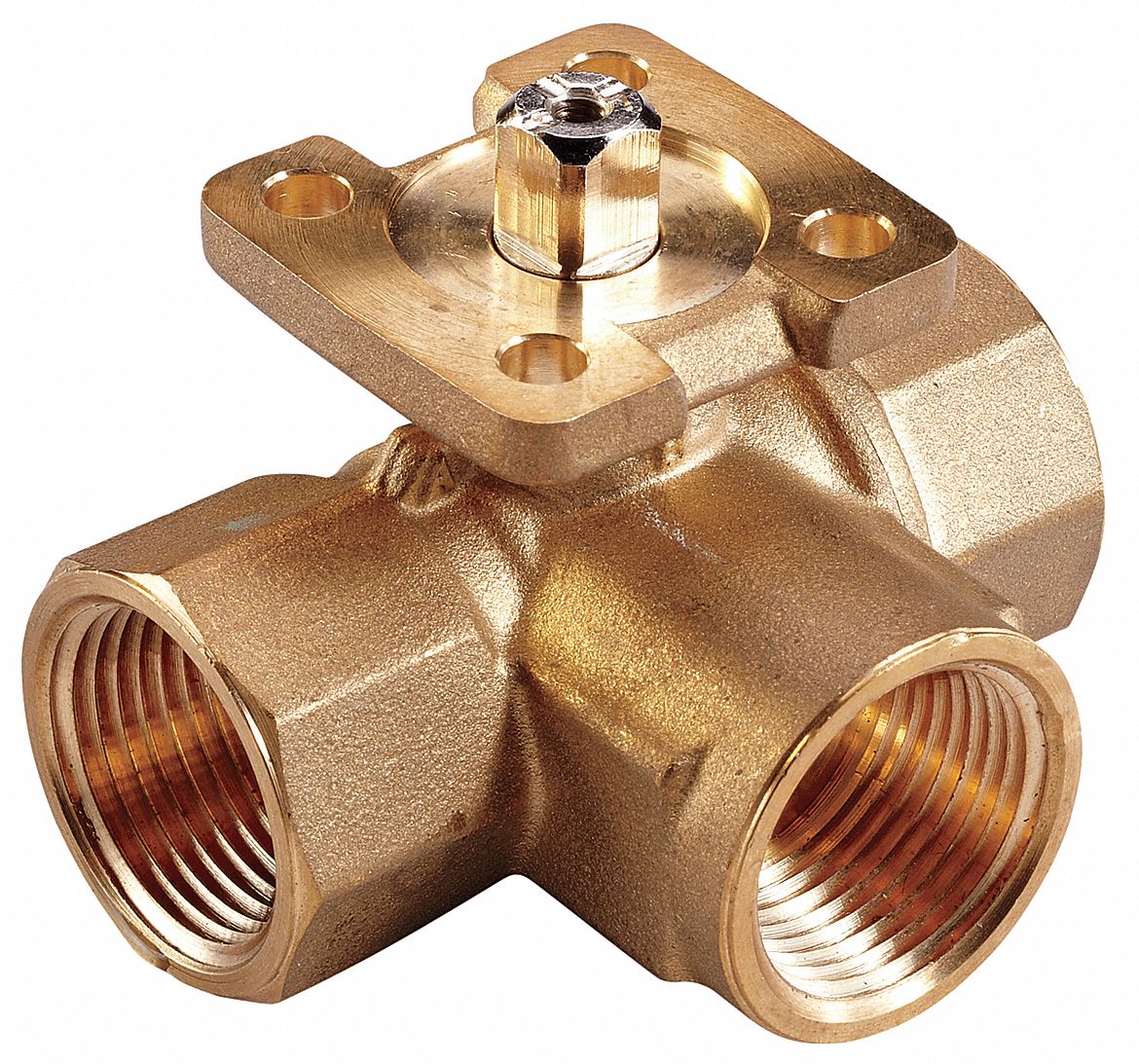

The HVAC Control Ball Valve: 3-Way is a brass-bodied, stainless-steel-ball 3-Way NPT Connection Ball Valve from HVAC. Designed for steam media, this valve features a 3/4 in Female NPT connection with a 7.4 CV flow and 4.7 bypass CV flow, supplied without an actuator under manufacturer part number VG1845BL.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No Actuator |
| CV Flow | 7.4 |
| For Media | Steam |
| Female NPT | 3/4 in |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Bypass CV Flow | 4.7 |
| Manufacturer Part Number | VG1845BL |
