Hvac 3G-OTH-69195 — Technical Specifications

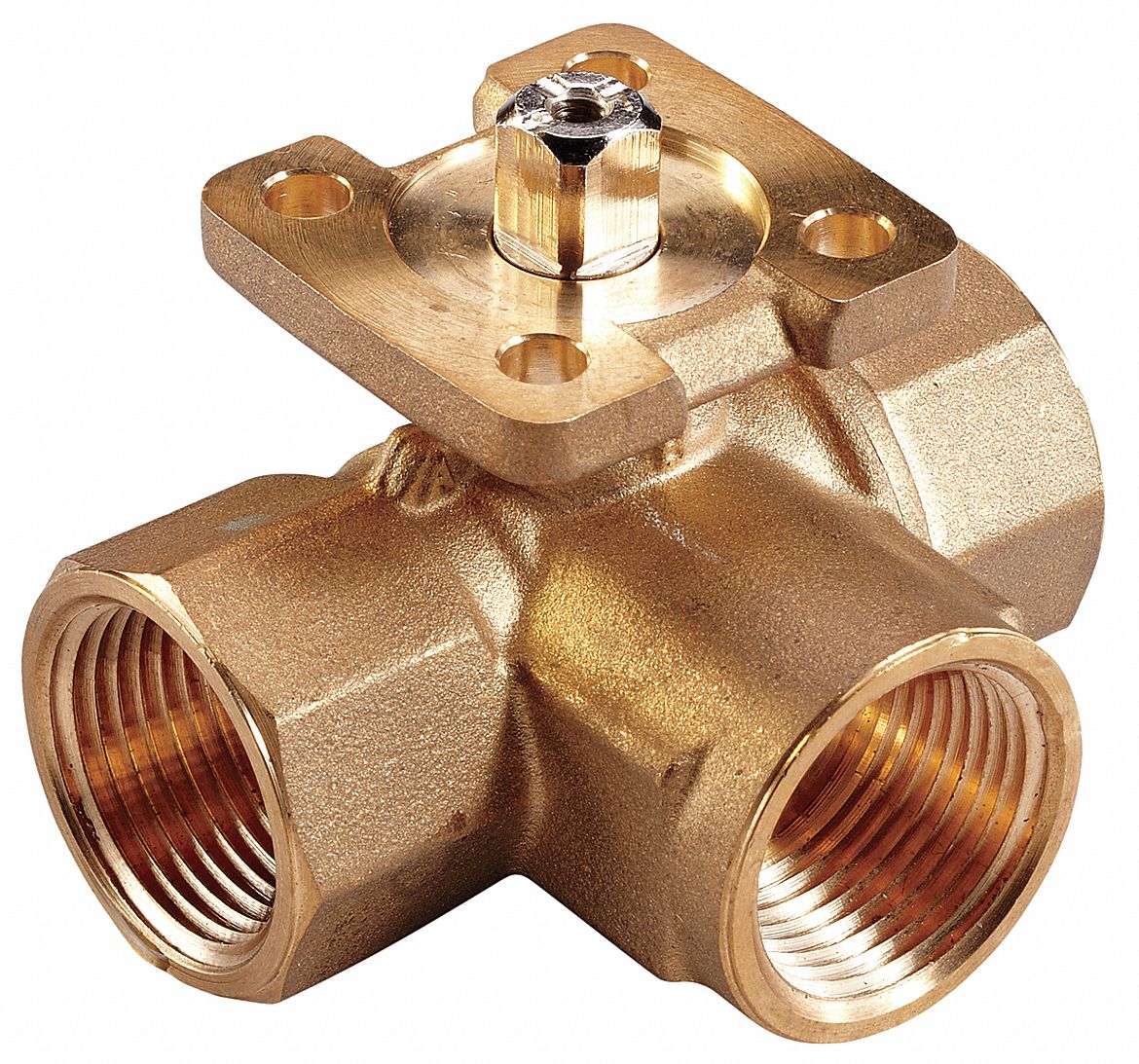

The HVAC Control Ball Valve: 3-Way is a brass-bodied, stainless-steel-ball 3-Way NPT Connection Ball Valve from HVAC (MPN VG1845AG). Designed for steam media, it features a 1/2 in Female NPT connection with a 4.7 CV flow and 2.9 bypass CV flow, and is supplied without an actuator.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No Actuator |
| CV Flow | 4.7 |
| For Media | Steam |
| Female NPT | 1/2 in |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Bypass CV Flow | 2.9 |
| Manufacturer Part Number | VG1845AG |
