Hvac 3G-OTH-69180 — Technical Specifications

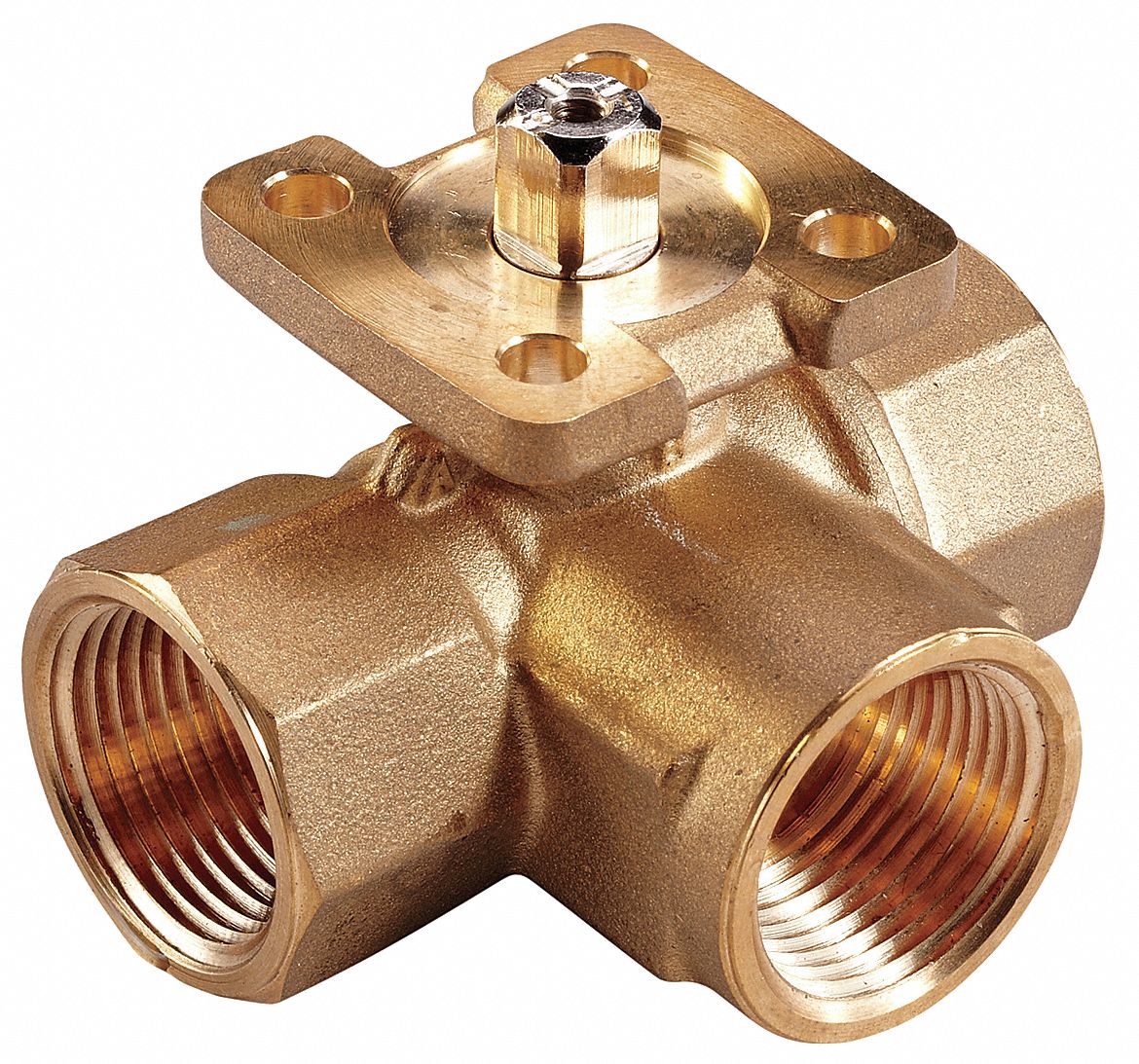

The HVAC Control Ball Valve: 3-Way is a 3-Way NPT Connection Ball Valve from HVAC, designed for steam media. This brass-bodied valve features a stainless steel ball and is supplied with a 1/2 in Female NPT connection, a 2.9 CV flow rate, and a 1.9 bypass CV flow rate (Manufacturer Part Number VG1845AF). It is sold without an actuator.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No Actuator |
| CV Flow | 2.9 |
| For Media | Steam |
| Female NPT | 1/2 in |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Bypass CV Flow | 1.9 |
| Manufacturer Part Number | VG1845AF |
