Hvac 3G-OTH-68442 — Technical Specifications

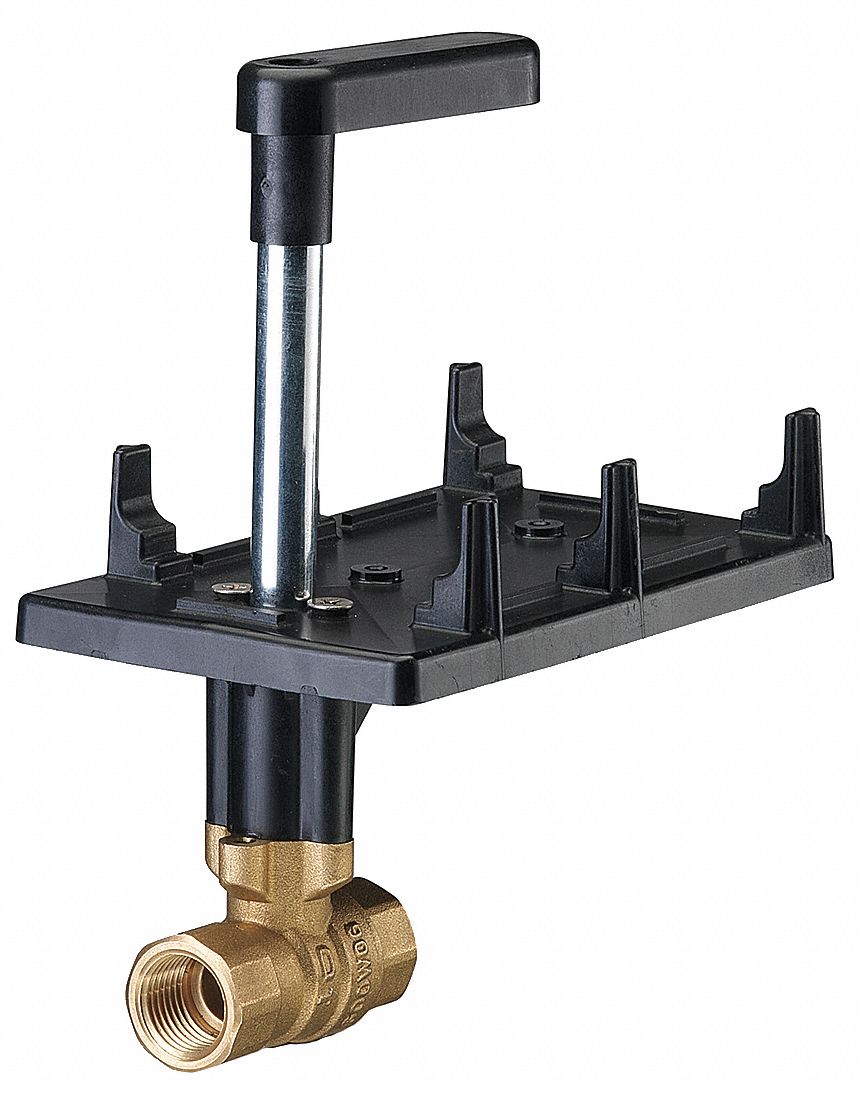

The HVAC Control Ball Valve: 2-Way is a 2-Way NPT Connection Ball Valve from HVAC, featuring a 1/2 in Female NPT connection, 0.63 CV flow, and 200 psi close-off. It is constructed with a stainless steel ball and brass body, designed for media including water-glycol solution up to 50%. This valve is supplied without an actuator (MPN 599-10301S).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | No Actuator |
| CV Flow | 0.63 |
| Close-Off | 200 psi |
| For Media | Water-Glycol Solution to 50% |
| Female NPT | 1/2 in |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Manufacturer Part Number | 599-10301S |
