Honeywell 3G-OTH-67723 — Technical Specifications

Name: Honeywell 3G-OTH-67723 Damper Actuator: Dampers/Valves, Floating Point/Proportional, Non-Spring Return, 300 in-lb, 24V AC (MPN MN7234A2008). Key specifications — Manufacturer Part Number: MN7234A2008; Shaft Type: 3/8" to 1-1/16" (Round) and 3/8 to 11/16" (Square); Shaft Rotation: CW/CCW; Stroke Degree: 95°; Plenum Rating: Plenum Rated; Power Rating: 6W; Input Voltage: 24V AC; Brand: HONEYWELL.
Brand: Honeywell

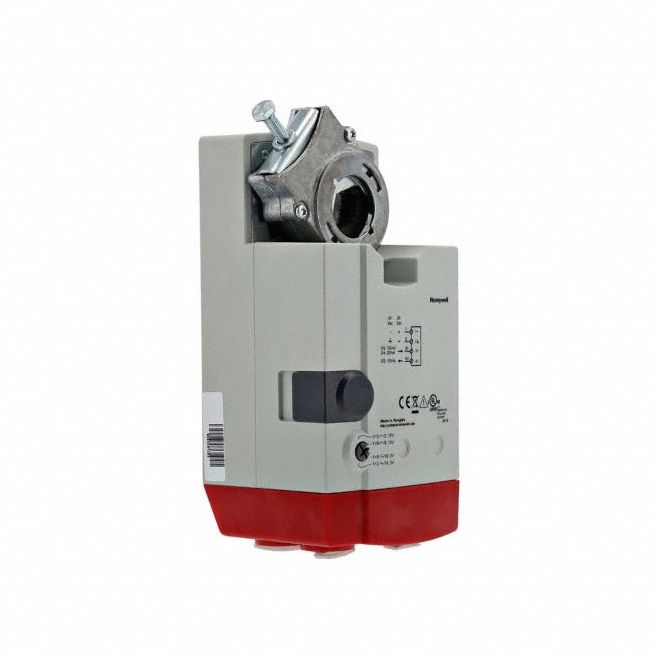

The Honeywell MN7234A2008 is a non-fail-safe, non-spring return damper actuator designed for dampers and valves. It operates with a 24V AC input, 6W power rating, and a 2 to 10V DC output signal, featuring a 95° stroke with CW/CCW shaft rotation. The actuator accepts round shafts from 3/8" to 1-1/16" and square shafts from 3/8" to 11/16", and is plenum rated with a hardwired electrical connection.

View Product & Quote

Technical Specifications

Parameter	Value
AC	24V
Type	Floating Point/Proportional, Non-Spring Return, 300 in-lb
Brand	HONEYWELL
Shaft Type	3/8" to 1-1/16" (Round) and 3/8 to 11/16" (Square)
Power Rating	6W
Input Voltage	24V AC
Output Signal	2 to 10V DC
Plenum Rating	Plenum Rated
Stroke Degree	95°
Shaft Rotation	CW/CCW
Manufacturer Part Number	MN7234A2008
Auxiliary Switch Included	No
Electrical Connection Type	Hardwired
