Honeywell 3G-OTH-66917 — Technical Specifications

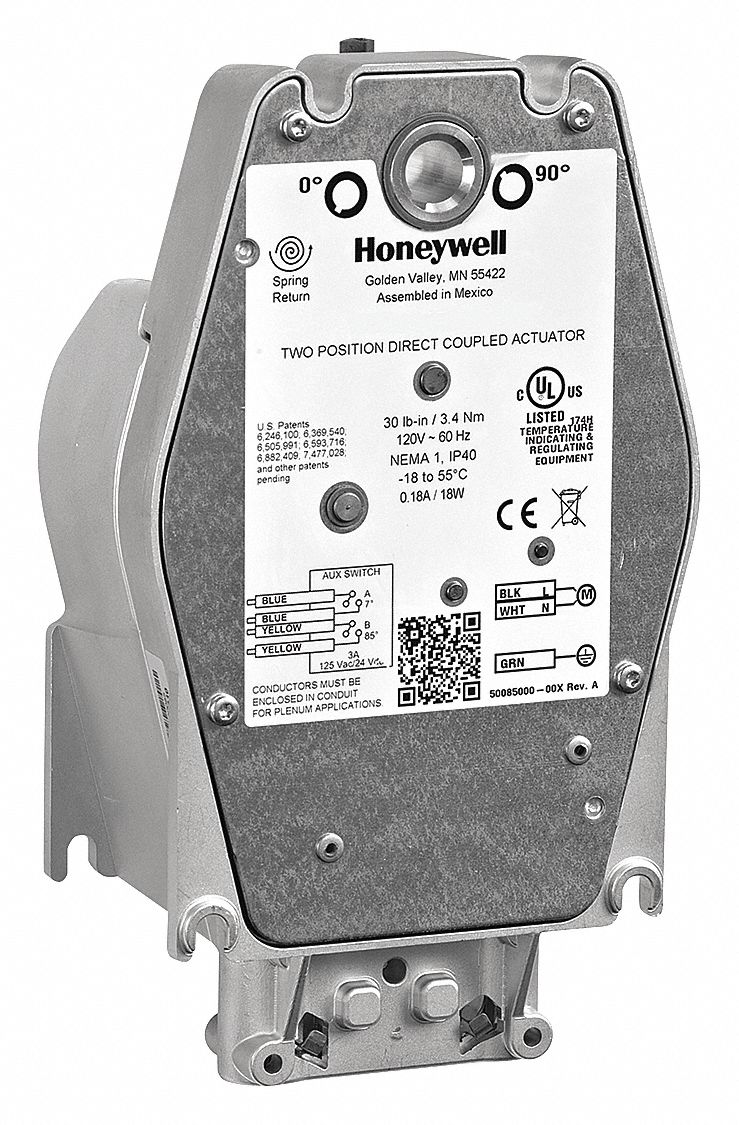

The Honeywell MS4104F1010/U is a fire and smoke rated actuator designed for fire and smoke dampers, featuring an on/off spring return operation with a 95° stroke and CW/CCW shaft rotation. It operates on 120V AC with an 18W power rating and is hardwired for electrical connection. This actuator is compatible with building automation systems and is rated NEMA 1 / IP40.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | On/Off, Spring Return, 30 in-lb, Hardwired, NEMA 1 / IP40 |
| Brand | HONEYWELL |
| Power Rating | 18W |
| Input Voltage | 120V AC |
| Stroke Degree | 95° |
| Shaft Rotation | CW/CCW |
| Manufacturer Part Number | MS4104F1010/U |
| Auxiliary Switch Included | No |
| Electrical Connection Type | Hardwired |
| For Use With Building Automation Systems | Building Automation System Compatible |
