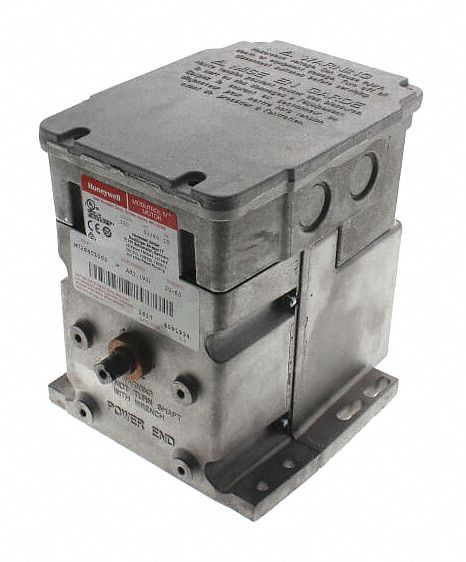

Honeywell 3G-OTH-67524 — Technical Specifications

Name: Honeywell 3G-OTH-67524 Actuator: Dampers/Economizers, Proportional, Non-Spring Return, 150 in-lb, 120V AC, Screw Terminals (MPN M7284C1000/U). Key specifications — Manufacturer Part Number: M7284C1000/U; Shaft Type: Double-Ended; Shaft Rotation: CW; Stroke Degree: 90 to 160°; Power Rating: 13W; Input Voltage: 120V AC; Brand: HONEYWELL; Electrical Connection Type: Screw Terminals.
Brand: Honeywell

The Honeywell M7284C1000/U is a non-fail-safe actuator for dampers and economizers, featuring a double-ended shaft with clockwise rotation and a stroke degree of 90 to 160°. It operates on 120V AC input with a 13W power rating, includes an auxiliary switch, and connects via screw terminals.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	Proportional, Non-Spring Return, 150 in-lb, Screw Terminals
Brand	HONEYWELL
Shaft Type	Double-Ended
Power Rating	13W
Input Voltage	120V AC
Stroke Degree	90 to 160°
Shaft Rotation	CW
Manufacturer Part Number	M7284C1000/U
Auxiliary Switch Included	Yes
Electrical Connection Type	Screw Terminals
